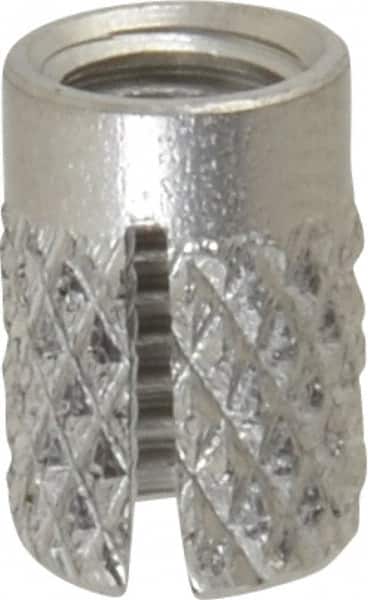

E-Z LOK - #10-32 UNF Grade 303 Stainless Steel Flush Press Fit Threaded Insert for Plastic - 0.357" OAL, 0.262" Insert Diam, 1/4" Hole Diam, 1/4" Drill
Item #: 93442069
Brand: E-Z LOK
Model #: 240-332-CR
Exact Tooling IR#: 04
Features and Benefits
Flush press fit threaded inserts do not have a flange, which allows screw and bolt heads to directly contact the workpiece material. They create a flush finish.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Flush |
| For Material Type | Plastic |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Thread Size | #10-32 |
| Overall Length (Decimal Inch) | 0.3570 |
| Insert Diameter (Decimal Inch) | 0.2620 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Material Grade | 303 |
| Drill Size (Inch) | 1/4 |
| Thread Standard | UNF |
