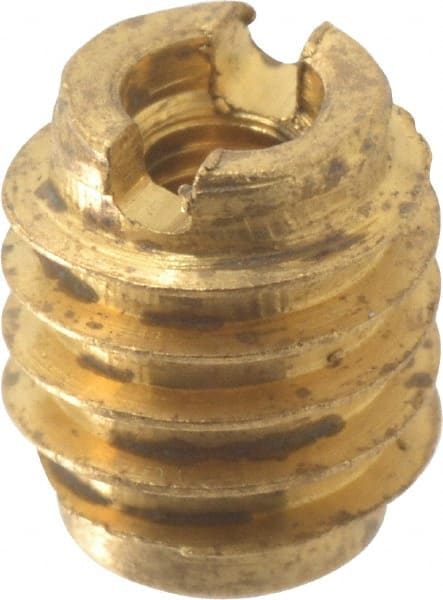

E-Z LOK - M3x0.5, Brass Knife Insert - 1/4" Drill, 1/4" Hole Diam, 3/8" Long, 1/2" Min Grip, M3 Hex
Item #: 93442168
Brand: E-Z LOK
Model #: 400-M3
Exact Tooling IR#: 04
Features and Benefits
Knife inserts have sharp threads that dig into wood. They are used when thread stripping or erosion is a concern.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Knife |
| System of Measurement | Metric |
| For Material Type | Wood |
| Material | Brass |
| Thread Size | M3x0.50 |
| Overall Length (Decimal Inch) | 0.3750 |
| Insert Diameter (Decimal Inch) | 0.3500 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hex Size (mm) | M3 |
| Minimum Grip (Decimal Inch) | 0.5000 |
| Drill Size (Inch) | 1/4 |
| Thread Standard | Metric Coarse |
