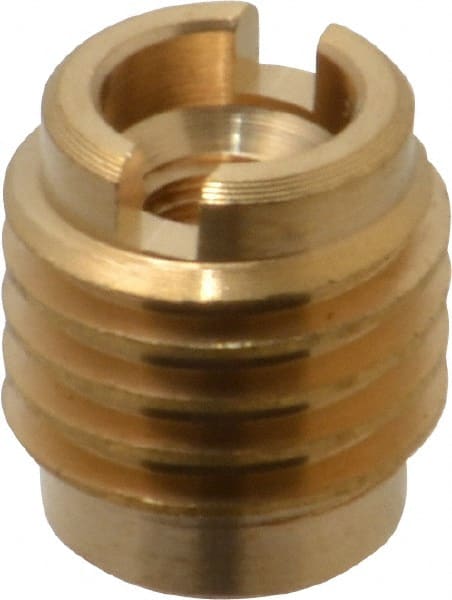

E-Z LOK - M5x0.8, Brass Knife Insert - 3/8" Drill, 3/8" Hole Diam, 1/2" Long, 5/8" Min Grip, M5 Hex
Item #: 93442184
Brand: E-Z LOK
Model #: 400-M5
Exact Tooling IR#: 04
Features and Benefits
Knife inserts have sharp threads that dig into wood. They are used when thread stripping or erosion is a concern.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Knife |
| System of Measurement | Metric |
| For Material Type | Wood |
| Material | Brass |
| Thread Size | M5x0.80 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Diameter (Decimal Inch) | 0.4530 |
| Hole Diameter (Decimal Inch) | 0.3750 |
| Hex Size (mm) | M5 |
| Minimum Grip (Decimal Inch) | 0.6250 |
| Drill Size (Inch) | 3/8 |
| Thread Standard | Metric Coarse |
