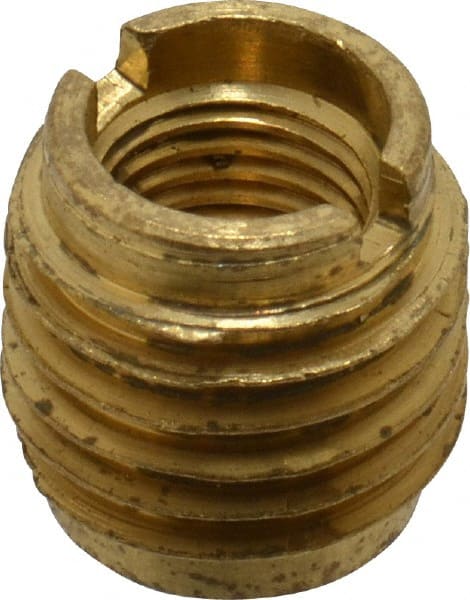

E-Z LOK - 3/8-24, Brass Knife Insert - 1/2" Drill, 1/2" Hole Diam, 5/8" Long, 3/4" Min Grip
Item #: 93442309
Brand: E-Z LOK
Model #: 400-624
Exact Tooling IR#: 04
Features and Benefits
Knife inserts have sharp threads that dig into wood. They are used when thread stripping or erosion is a concern.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Knife |
| System of Measurement | Inch |
| For Material Type | Wood |
| Material | Brass |
| Thread Size | 3/8-24 |
| Overall Length (Decimal Inch) | 0.6250 |
| Insert Diameter (Decimal Inch) | 0.6000 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Minimum Grip (Decimal Inch) | 0.7500 |
| Drill Size (Inch) | 1/2 |
| Thread Standard | UNF |
