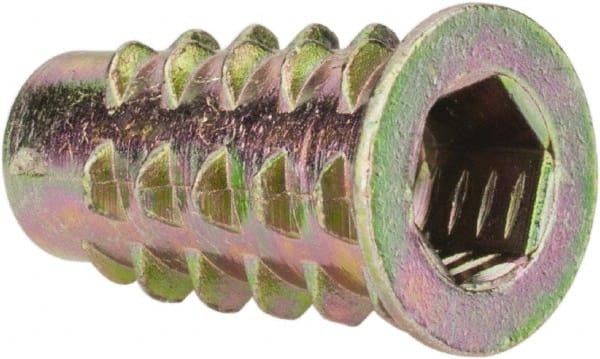

E-Z LOK - 1/4-20, Zinc Alloy Flanged Hex Drive Insert - 23/64" Drill, 0.3543" Hole Diam, 0.7874" Long, M6 Hex
Item #: 93442408
Brand: E-Z LOK
Model #: 901420-20
Exact Tooling IR#: 04
Features and Benefits
Flanged hex drive types have a weight-bearing lip, or flange, along the top of the insert to anchor it in place.
Zinc alloy is a tough, strong and stable material. It is used on steel for decorative purposes and to resist corrosion.
| Product Specifications | |
|---|---|
| Type | Flanged Hex Drive |
| System of Measurement | Inch |
| For Material Type | Wood |
| Material | Zinc Alloy |
| Thread Size | 1/4-20 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Insert Diameter (Decimal Inch) | 0.4610 |
| Hole Diameter (Decimal Inch) | 0.3543 |
| Hole Diameter (mm) | 9.00 |
| Hex Size (mm) | M6 |
| Head Diameter (Decimal Inch) | 0.4920 |
| Drill Size (Inch) | 23/64 |
| Thread Standard | UNC |
