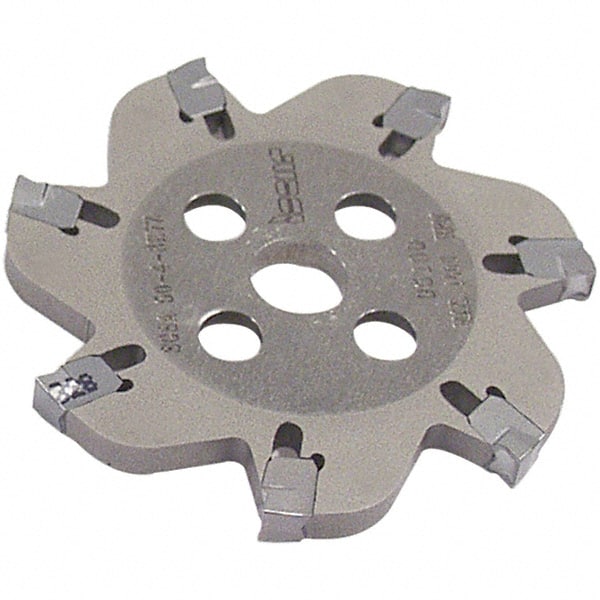

Iscar - Arbor Hole Connection, 0.106" Cutting Width, 0.413" Depth of Cut, 50mm Cutter Diam, 8mm Hole Diam, 7 Tooth Indexable Slotting Cutter - SGSA Toolholder, GSAN 3 Insert, Right Hand Cutting Direction
Item #: 93517092
Brand: Iscar
Model #: 2301762
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 10.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4130 |
| Cutter Diameter (mm) | 50.00 |
| Cutter Diameter (Decimal Inch) | 1.9690 |
| Hole Diameter (mm) | 8.00 |
| Number of Teeth | 7 |
| Toolholder Style | SGSA |
| Series | Self-Grip(SGSA) |
| Insert Style | GSAN 3 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 1600 |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (mm) | 3.53 |
| Hub Diameter (mm) | 27.00 |
| Cutting Radius (Inch) | 1/64 |
| Cutter Body Width (mm) | 2.40 |
| Complete Insert Compatibility1 | GSAN 3 |
