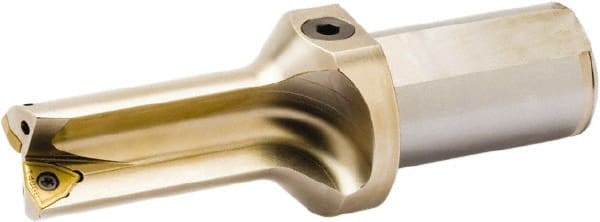

Seco - 3.228" Max Drill Depth, 2xD, 1.614" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 93583979
Brand: Seco
Model #: 36815
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (Decimal Inch) | 1.6140 |
| Maximum Drill Depth (Decimal Inch) | 3.2280 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8500 |
| Overall Length/Projection (Decimal Inch) | 7.5470 |
| Insert Compatibility (Outside or Peripheral) | WCMX 080412.. |
| Insert Compatibility | WCMX 080412-86 |
| Flute Length (Decimal Inch) | 3.4250 |
| Body Length (Decimal Inch) | 4.6060 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 2.3030 |
| Series | PerfoMAX |
