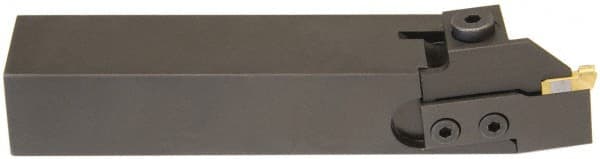

Hertel - HCE, Left Hand Cut, 1-5/8" Max Workpc Diam, Indexable Cutoff Toolholder - 0.8 Max Depth of Cut, 31.75mm Shank Width, 1" Shank Height, 6" OAL
Item #: 93650950
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6250 |
| Toolholder Style | HCE |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Width (Decimal Inch) | 0.1875 |
| Insert Width (Inch) | 3/16 |
| Head Length (Decimal Inch) | 1.5000 |
| Shank Length (Decimal Inch) | 5.2960 |
