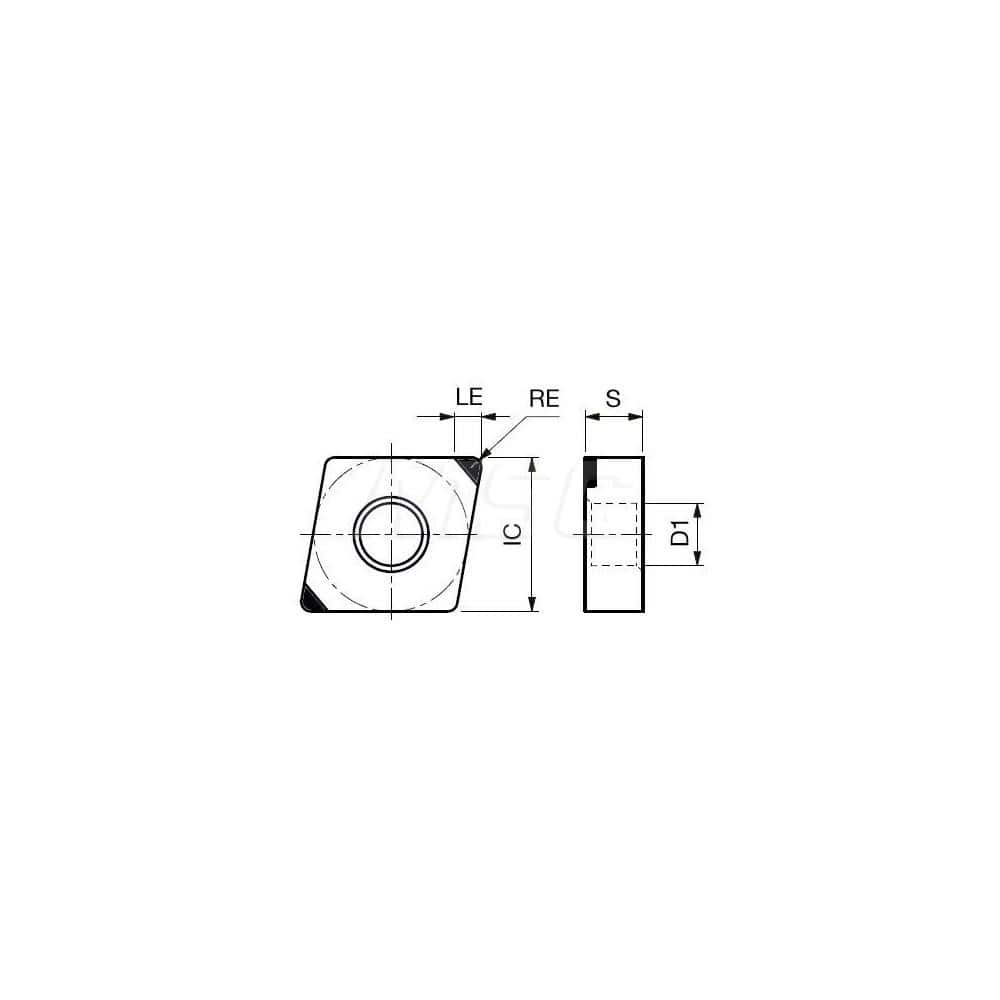

Turning Insert: 2QP-CNMA431-W BX330, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0160″ Corner Radius, 80.0 ° N/A Diamond, Series CNMA
Item #: 93651248
Brand: Tungaloy
Model #: 6822256
Product Specifications
| Insert Style | CNMA |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX330 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPCNMA431WBX330 |
| Iso Code | 2QP-CNMA 431-W BX330 |
| Chip Breaker | W-CBN |
| Coating/Finish | Uncoated |
