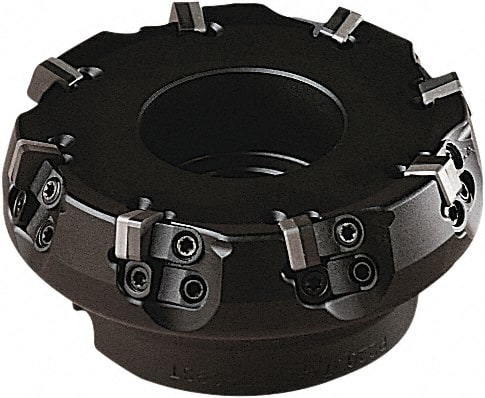

Seco - 5.01" Cut Diam, 1-1/2" Arbor Hole, 0.315" Max Depth of Cut, 75° Indexable Chamfer & Angle Face Mill - 9 Inserts, SN.. Insert, Right Hand Cut, 8 Flutes, Series R220.74
Item #: 93675775
Brand: Seco
Model #: 59860
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0100 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | SN.. |
| Series | R220.74 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Cutting Rake Angle | -6 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum Body Diameter (Decimal Inch) | 4.9200 |
| Maximum RPM | 7200 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNEN 2ENE-M06; SNEN 32ENS-M08; SNEX 423ZZ; SNGN 322E; SNGN 322S; SNGN 322S-00625; SNGN 323S; SNGN 324S; SNMN 322E; SNMN 322S; SNMN 323E; SNMN 323S; SNMN 324S |
