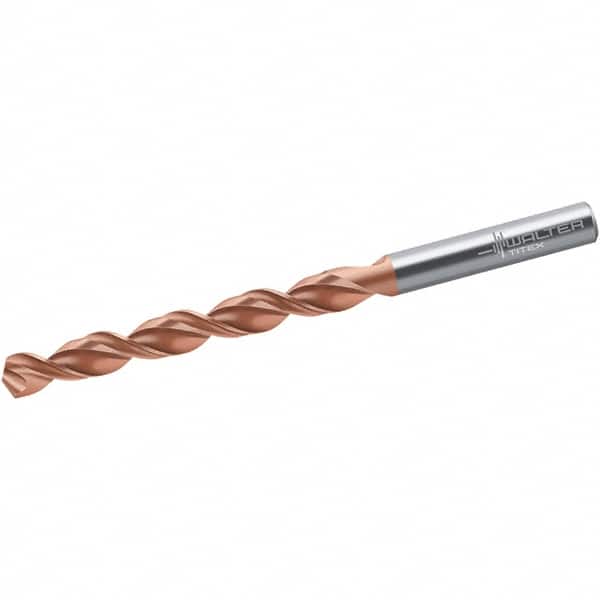

Walter-Titex - #16 130° Point Xtreme Performance Finish Vanadium High Speed Steel Jobber Drill
Item #: 93693018
Brand: Walter-Titex
Model #: 5337285
Product Specifications
| Drill Bit Size (Wire) | #16 |
| Drill Bit Size (Decimal Inch) | 0.1770 |
| Drill Point Angle | 130 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Bit Finish/Coating | Xtreme Performance |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 47.00 |
| Overall Length (mm) | 80.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.012 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.00000 to -0.00071 |
| Web Thinning | Web-Thinned |
| Series/List | A1249XPL |
