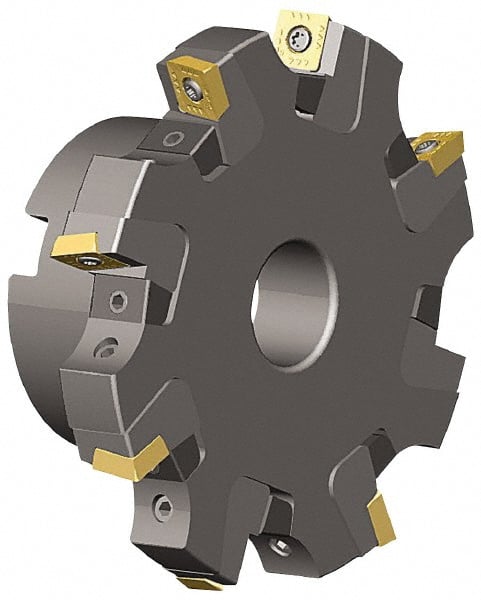

Kennametal - Shell Mount Connection, 0.709" Cutting Width, 1" Depth of Cut, 5" Cutter Diam, 1-1/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - KSSS Toolholder, SDCT, SDCW, SDET, SDPT Insert
Item #: 93751816
Brand: Kennametal
Model #: 2268679
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.7090 |
| Maximum Depth of Cut (Decimal Inch) | 0.9970 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 8 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SDCT; SDCW; SDET; SDPT |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Maximum RPM | 10300 |
| Minimum Cutting Width (Decimal Inch) | 0.7090 |
| Maximum Cutting Width (Decimal Inch) | 0.8130 |
| Hub Diameter (Decimal Inch) | 2.8800 |
| Keyway Width (Inch) | 1/2 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 2.0930 |
| Complete Insert Compatibility2 | SDCT 12; SDCT 120404PDERLD2; SDCT 1204PDELLD2; SDET 120420SNGB2; SDET 120424SNGB2; SDET 120432SNGB2; SDET 120464SNGB2; SDET 1204PDERGB2; SDET 1204PDSLGB2; SDET 1204PDSRGB2 |
| Complete Insert Compatibility1 | SDCT 120404PDELLD2; SDET 120412PDELGB2; SDET 120412PDERGB2; SDET 120416SNGB2; SDET 120432XENGB2; SDET 1204PDELGB2 |
