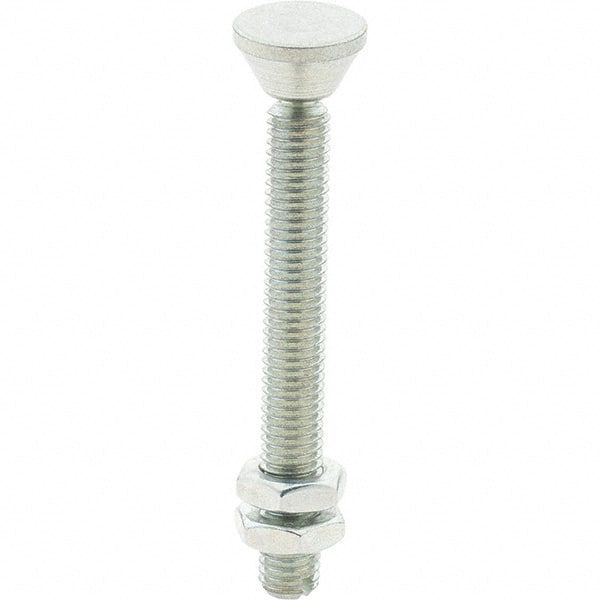

De-Sta-Co - M8 Carbon Steel Swivel Foot Tip Clamp Spindle Assembly - 62.48mm Thread Length, 72.9mm OAL, 0.63" Tip Surface Diam, Use with Toggle Clamps
Item #: 93807667
Brand: De-Sta-Co
Model #: 507206-M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | M8 |
| Thread Length (Decimal Inch) | 2.4600 |
| Thread Length (mm) | 62.48 |
| Overall Length (mm) | 72.90 |
| Overall Length (Decimal Inch) | 2.8700 |
| Tip Type | Swivel Foot |
| Tip Surface Diameter (mm) | 16.00 |
| Tip Surface Diameter (Decimal Inch) | 0.6300 |
| Swivel Angle | 30.00 |
| Nut Height (Decimal Inch) | 0.1600 |
| Nut Height (mm) | 4.06 |
| Includes | Jam Nuts |
| For Use With | Manual Operated Clamp |
