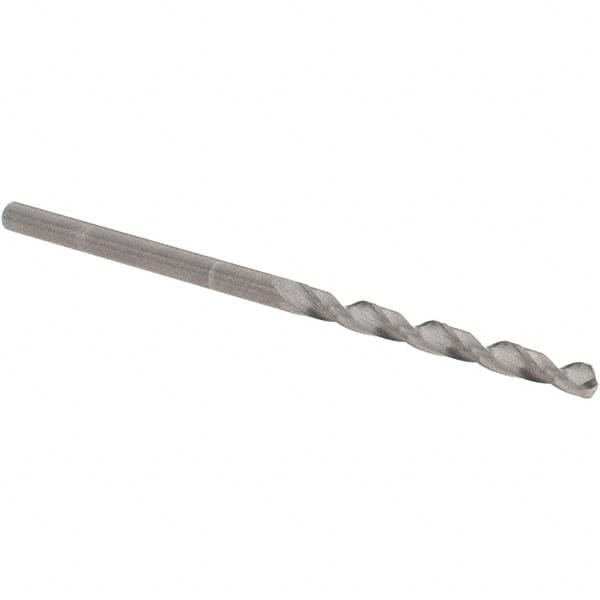

Jobber Length Drill Bit: 0.0938″ Dia, 118 °, Solid Carbide Bright/Uncoated, 2.2441″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 732
Item #: 93811248
Brand: Guhring
Model #: 9007320023800
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0938 |
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0938 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2441 |
| Flute Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 1.1811 |
| Series | 732 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 3/32 |
| Shank Diameter (mm) | 2.38 |
| Maximum Drilling Depth (Decimal Inch) | 1.1811 |
| Maximum Drilling Depth (mm) | 30.00 |
| Shank Length (mm) | 27.00 |
| Shank Length (Decimal Inch) | 1.0630 |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Material Grade | DK120 |
