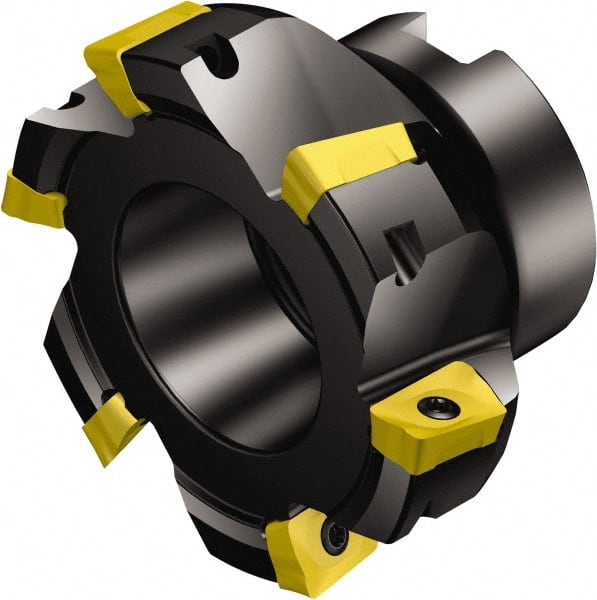

Sandvik Coromant - 9 Inserts, 3" Cut Diam, 1" Arbor Diam, 0.3937" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.969" High, R390-11.. Insert Compatibility, Series CoroMill 390
Item #: 93828408
Brand: Sandvik Coromant
Model #: 5739770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 18700 |
| Cutting Edge Length (Decimal Inch) | 0.3937 |
| ISO Number | RA390076R2511H |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
