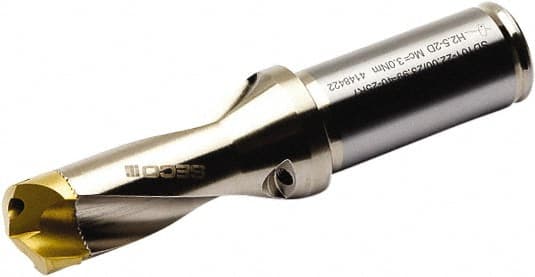

Seco - 20 to 21.99mm Diam, 1.5xD, 40mm Max Depth, 1" Shank Diam, 2.106" Flute, 5.098" OAL, Replaceable Tip Drill - SD101 Toolholder, Series Crownloc
Item #: 93859973
Brand: Seco
Model #: 21056
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 20.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 21.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.8657 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 2.1060 |
| Body Length (Decimal Inch) | 2.8930 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 5.0980 |
| Shank Length (Decimal Inch) | 2.2040 |
