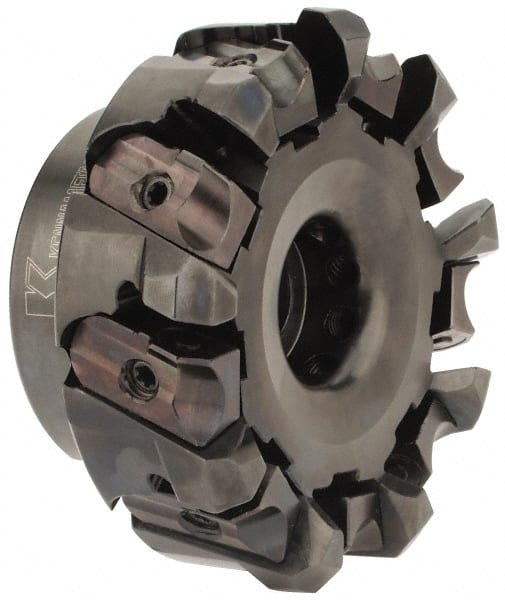

Kennametal - 3" Cut Diam, 1" Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 9 Inserts, OF.T 07L6... Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series KSOM
Item #: 93882256
Brand: Kennametal
Model #: 2405673
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | OF.T 07L6... |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Wedge |
| Cutter Style | KFWR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Maximum Body Diameter (Decimal Inch) | 3.4410 |
| Maximum RPM | 6270 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
