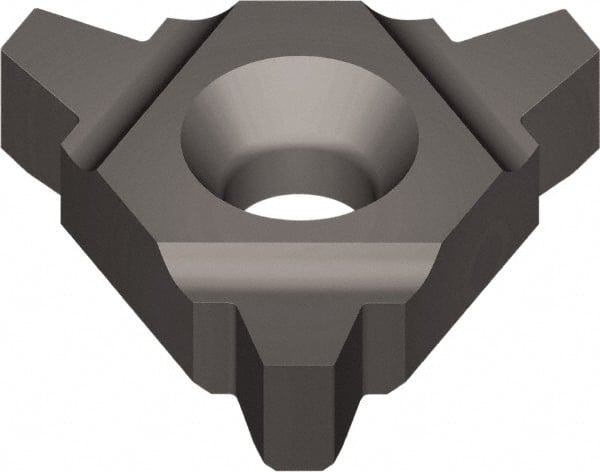

Vargus - 4UI Internal Left & Right Hand 4 Stub Acme Laydown Threading Insert - Grade VTX, TiAlN Coated Carbide, 12.7mm Inscribed Circle
Item #: 93970531
Brand: Vargus
Model #: 58999
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4UI |
| Insert Hand | Left Hand, Right Hand |
| Thread Type | Internal |
| Thread Standard | Stub Acme |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Threads Per Inch | 4 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Included Angle of Threading Tip | 29 |
| Coating | TiAlN |
| Coating Process | PVD |
| Number of Teeth Per Side | 1 |
