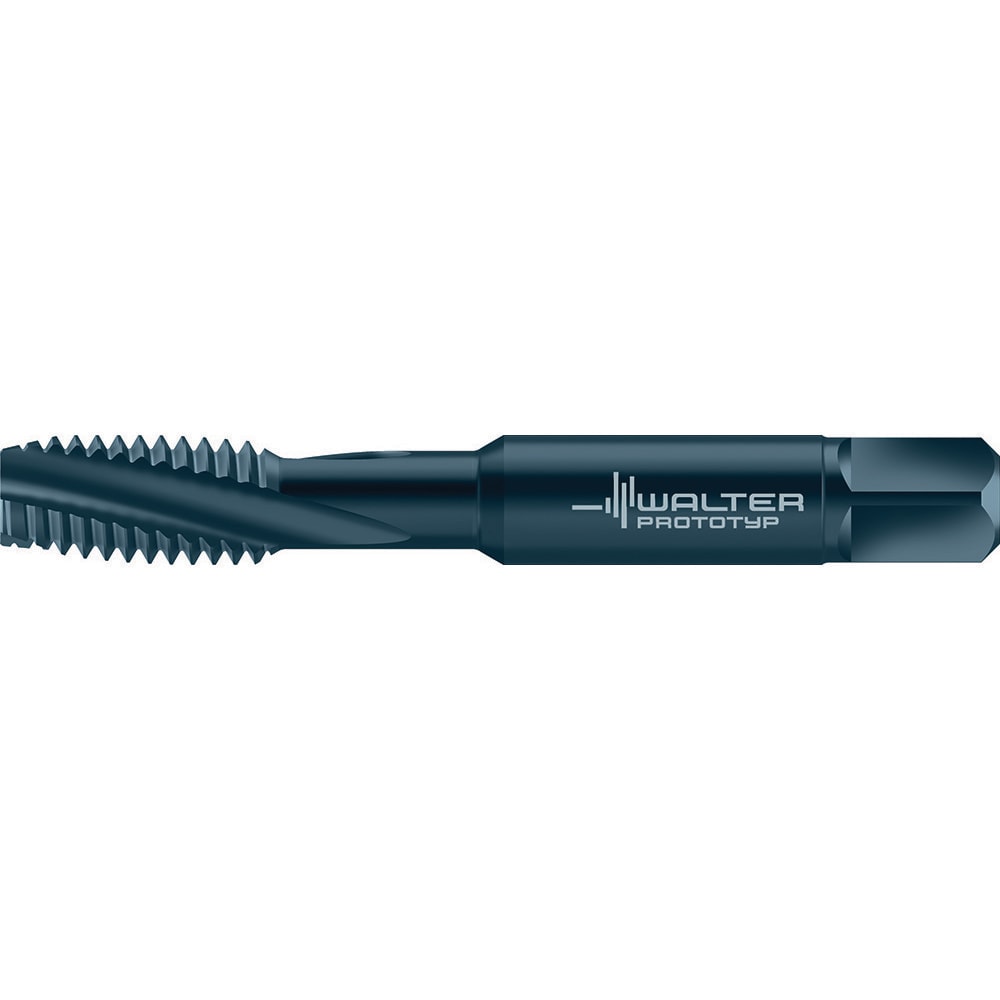

Spiral Flute STI Taps; Thread Size (Inch): #4-40; Overall Length (Decimal Inch): 2.0591; Overall Length (mm): 52.3000; Helix Angle: 15.00; Chamfer: Semi-Bottoming
Item #: 52756962
Brand: Walter-Prototyp
Model #: 8046355
Product Specifications
| Thread Size (Inch) | #4-40 |
| Overall Length (Decimal Inch) | 2.0591 |
| Overall Length (mm) | 52.3000 |
| Helix Angle | 15.00 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H9 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material | Powdered Metal |
| Thread Length (Decimal Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Shank Diameter (mm) | 3.5800 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| UNSPSC Code | 23241600 |
