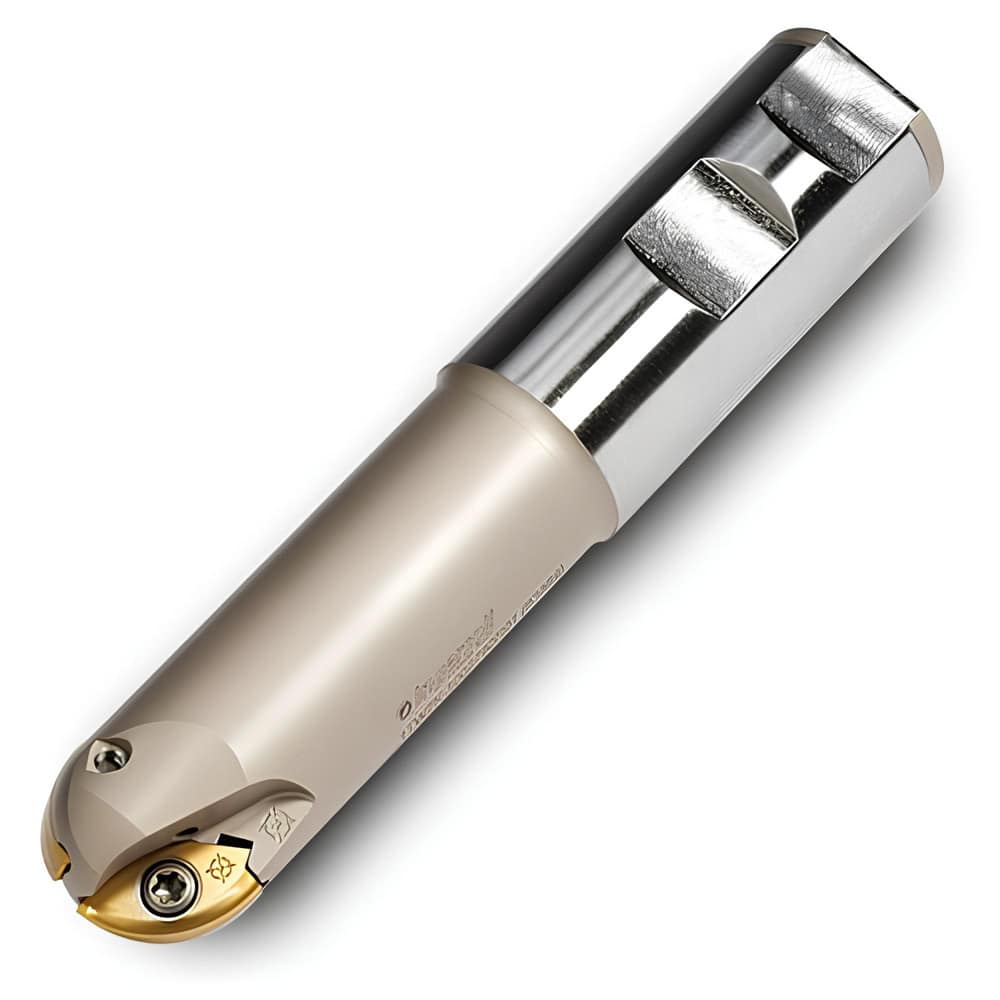

Indexable Ball Nose End Mills; Milling Diameter: 1.0000 in; Maximum Depth Of Cut: 0.6800 in; Shank Diameter: 1.2500 in; Shank Type: Weldon Flat; Compatible Insert Style: NBEU; Compatible Insert Size Code: 25T4; Toolholder Style: 1TW8K; Series: 1TW8; Overa
Item #: 94270360
Brand: Ingersoll Cutting Tools
Model #: 6166368
Product Specifications
| Milling Diameter | 1.0000 in |
| Maximum Depth Of Cut | 0.6800 in |
| Shank Diameter | 1.2500 in |
| Shank Type | Weldon Flat |
| Compatible Insert Style | NBEU |
| Compatible Insert Size Code | 25T4 |
| Toolholder Style | 1TW8K |
| Series | 1TW8 |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.3600 in |
