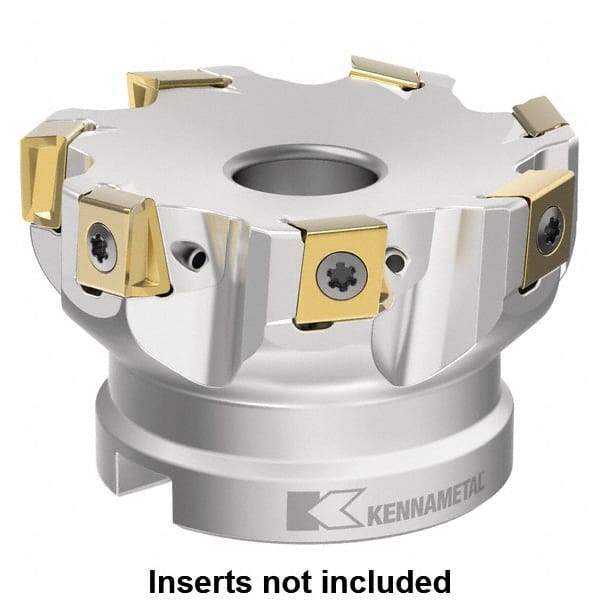

Kennametal - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2 Cutting Diameter (Decimal Inch): 2.0000
Item #: 94275377
Brand: Kennametal
Model #: 6524735
Exact Tooling IR#: 04
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 3/4 ; Lead Angle: 0 ; Overall Height (Inch): 1-1/2 ; Insert Compatibility: LNGQ
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 0 |
| Overall Height (Inch) | 1-1/2 |
| Insert Compatibility | LNGQ |
| Series | Mill 4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4777 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KT4 |
| Number of Flutes | 5 |
| Hub Diameter (Inch) | 1-3/4 |
| Maximum Body Diameter (Decimal Inch) | 1.9506 |
| Maximum RPM | 25700 |
| ISO Number | KT4D200Z05S075LN12L150 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | LNGQ 120608.R..KT4 |
| Toolholder Material | Steel |
