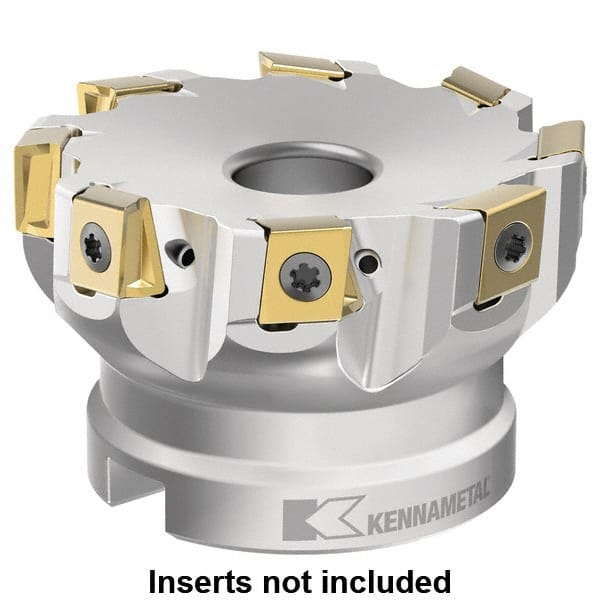

Kennametal - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 200.00 Cutting Diameter (Decimal Inch): 7.8740
Item #: 94275393
Brand: Kennametal
Model #: 6524775
Exact Tooling IR#: 04
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 200.00 ; Cutting Diameter (Decimal Inch): 7.8740 ; Arbor Hole Diameter (mm): 60.00 ; Lead Angle: 0 ; Overall Height (mm): 63.00 ; Insert Compatibility: LNGQ
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | LNGQ |
| Series | Mill 4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.14 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 22 |
| Insert Holding Method | Screw |
| Cutter Style | KT4 |
| Number of Flutes | 22 |
| Hub Diameter (mm) | 130.00 |
| Maximum Body Diameter (Decimal Inch) | 7.7104 |
| Maximum RPM | 11200 |
| ISO Number | KT4D200Z22S60LN12 |
| Complete Insert Compatibility | LNGQ 120608.R..KT4 |
| Toolholder Material | Steel |
