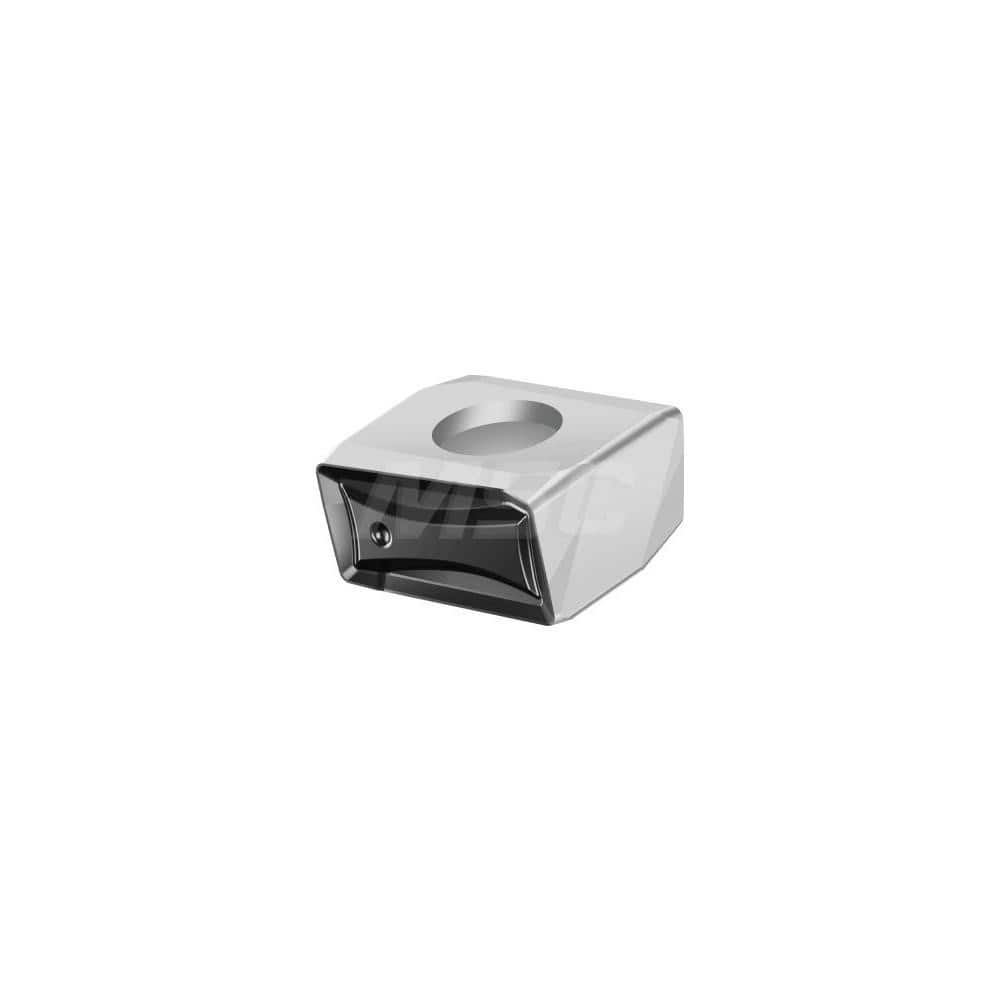

Boring Insert: P41602L08E47 WKK20S, Solid Carbide TiCN, Al2O3 & TiCN Finish, Diamond, 0.197″ Thick
Item #: 94644523
Brand: Walter
Model #: 7782315
Product Specifications
| Insert Style | P4160 |
| Insert Size Code | 2L08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKK20S |
| Insert Hand | Left Hand |
| Rake | Positive |
| Chipbreaker | E47 |
| Series | P4160-E47 |
| Coating Process | CVD |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | P4160-2L08-E47 WKK20S |
| Standards | ISO |
| Cutting Direction | Left Hand |
| Shape | Rectangular |
| Manufacturers Catalog Number | P4160-2L08-E47 WKK20S |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Coating/Finish | TiCN; Al2O3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1970 |
