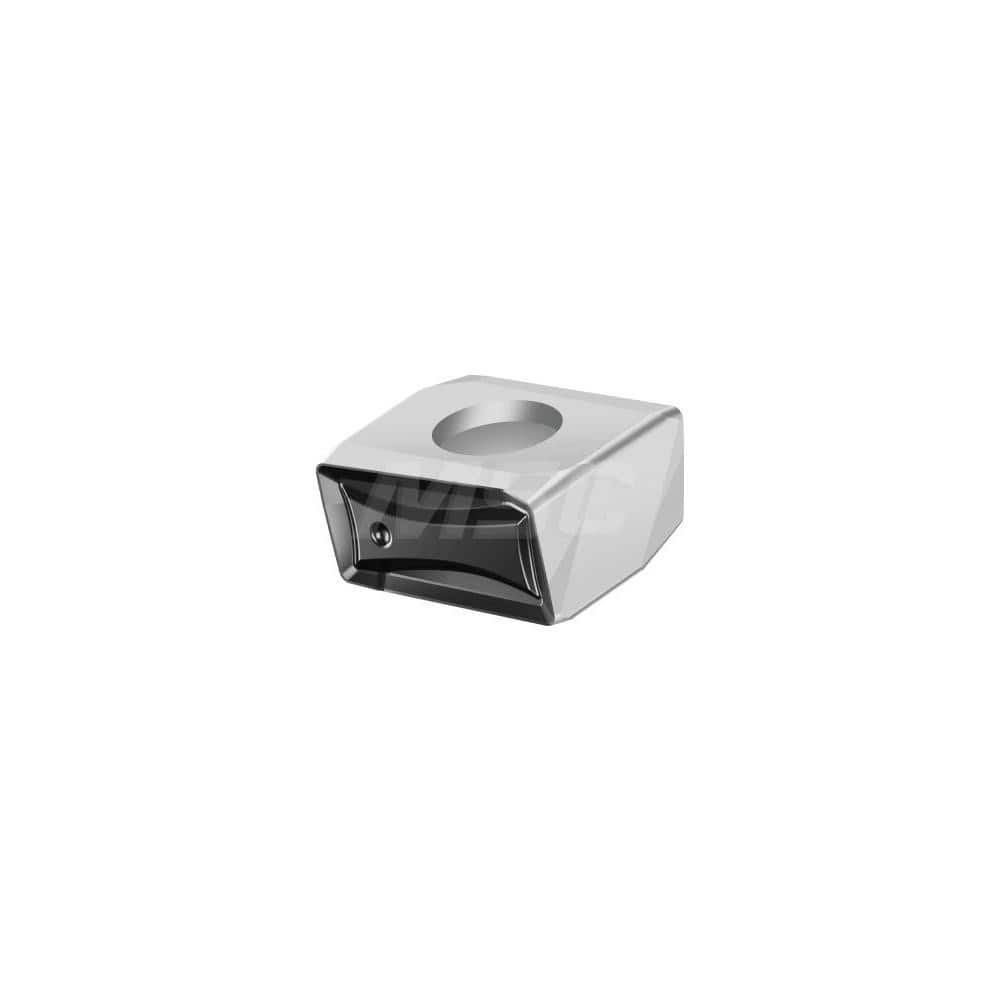

Boring Insert: P41602L08E47 WSM20S, Solid Carbide TiAlN, Al2O3 & Al Finish, Diamond, 0.197″ Thick
Item #: 94644598
Brand: Walter
Model #: 7782317
Product Specifications
| Insert Style | P4160 |
| Insert Size Code | 2L08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM20S |
| Insert Hand | Left Hand |
| Rake | Positive |
| Chipbreaker | E47 |
| Series | P4160-E47 |
| Coating Process | PVD |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | P4160-2L08-E47 WSM20S |
| Standards | ISO |
| Cutting Direction | Left Hand |
| Shape | Rectangular |
| Manufacturers Catalog Number | P4160-2L08-E47 WSM20S |
| Length (Decimal Inch - 4 Decimals) | 0.3940 |
| Coating/Finish | Al; TiAlN; Al2O3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1970 |
