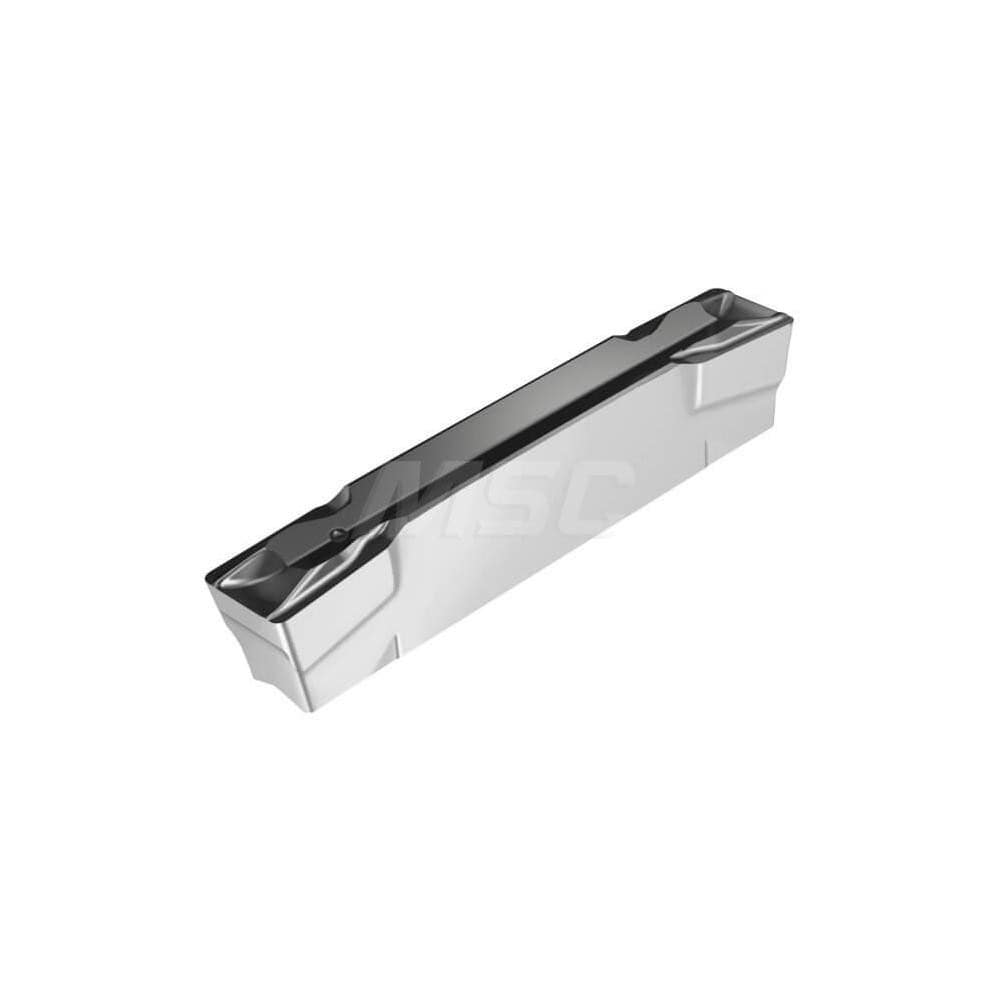

Grooving Insert: GX16UF8 WSM23S, Solid Carbide Al Finish, Neutral, 0.077″ Cutting Width, Series Tiger-tec Silver
Item #: 94645660
Brand: Walter
Model #: 7319510
Product Specifications
| Insert Style | GX16 |
| Insert Size Code | 0E196N01 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.0770 |
| Maximum Depth of Cut (mm) | 1.20 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0040 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Recessing |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6300 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX160E196N01UF8 WSM23S |
| Iso Code | GX160E196N01UF8 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX16-0E196N01-UF8 WSM23S |
| Chip Breaker | UF8 |
| Coating/Finish | Al |
