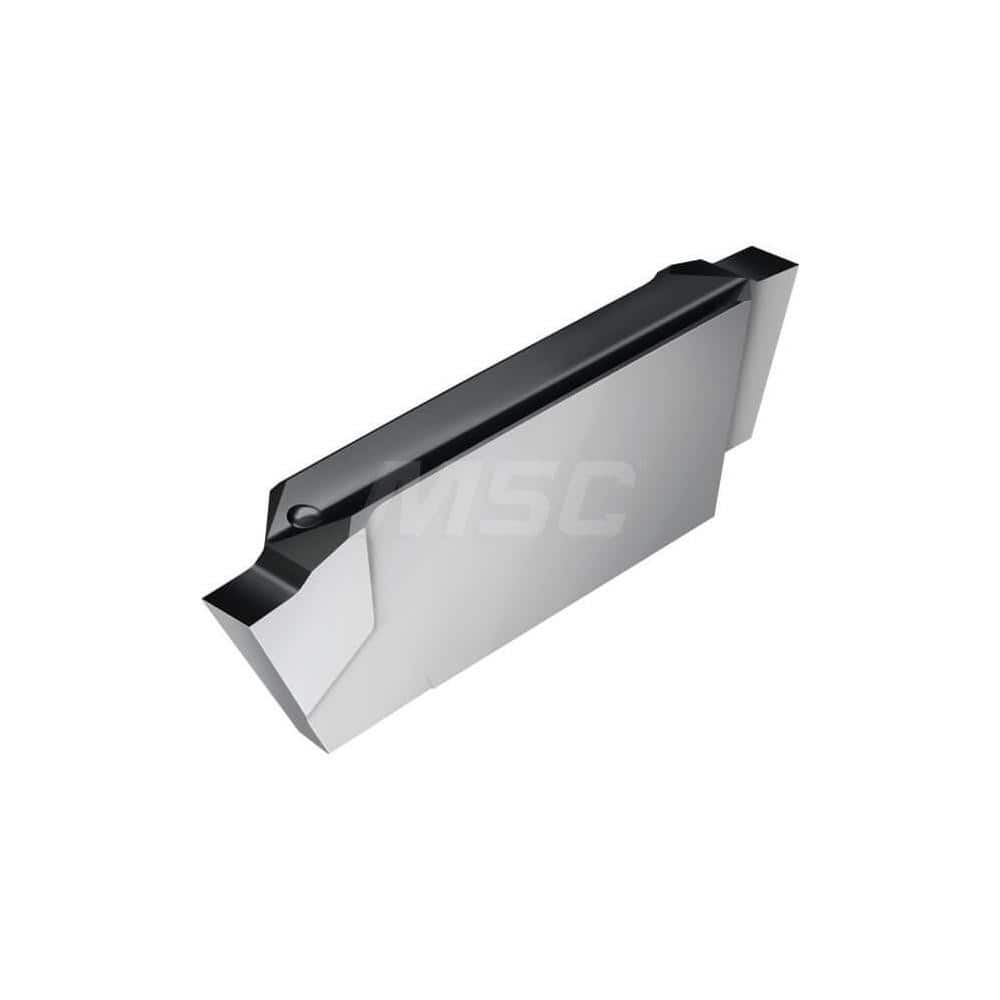

Grooving Insert: GX16GD8 WSM23S, Solid Carbide Al Finish, Left Hand, 0.039″ Cutting Width, Series Tiger-tec Silver
Item #: 94645827
Brand: Walter
Model #: 7350904
Product Specifications
| Insert Style | GX16 |
| Insert Size Code | 2E100L00 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 1.14 |
| Insert Hand | Left Hand |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6300 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX162E100L00GD8 WSM23S |
| Iso Code | GX162E100L00GD8 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX16-2E100L00-GD8 WSM23S |
| Chip Breaker | GD8 |
| Coating/Finish | Al |
