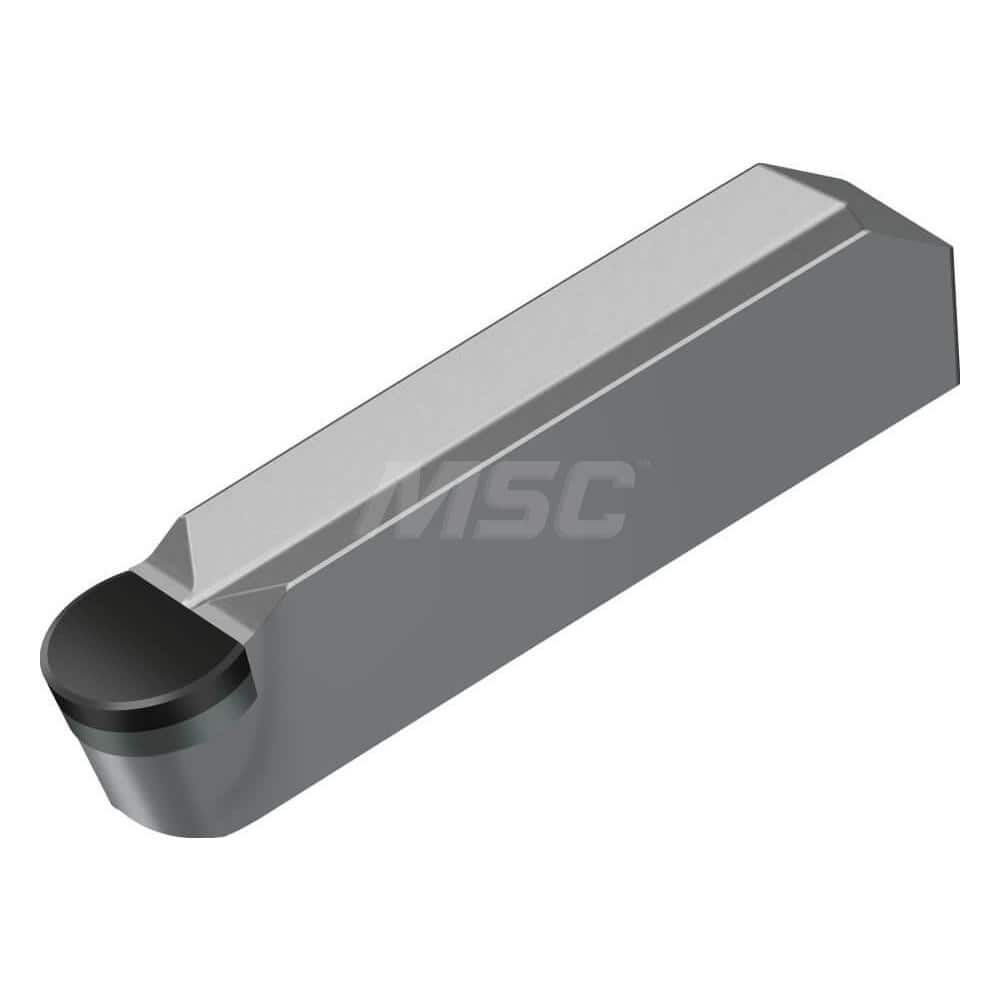

Grooving Insert: GX24TM-1 WBH20, Solid Carbide CBN Finish, Neutral, 0.236″ Cutting Width, Series GX24_TM-1_R
Item #: 94646072
Brand: Walter
Model #: 7823882
Product Specifications
| Insert Style | GX24 |
| Insert Size Code | 4F600N30TM |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WBH20 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1180 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | GX24_TM-1_R |
| Overall Length (Decimal Inch) | 0.9450 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | GX24-4F600N30TM1 WBH20 |
| Iso Code | GX24-4F600N30TM1 WBH20 |
| Standards | ISO; ANSI |
| Maximum Corner Radius (Decimal Inch) | 0.1180 |
| Chip Breaker | TM-1 |
| Coating/Finish | CBN |
