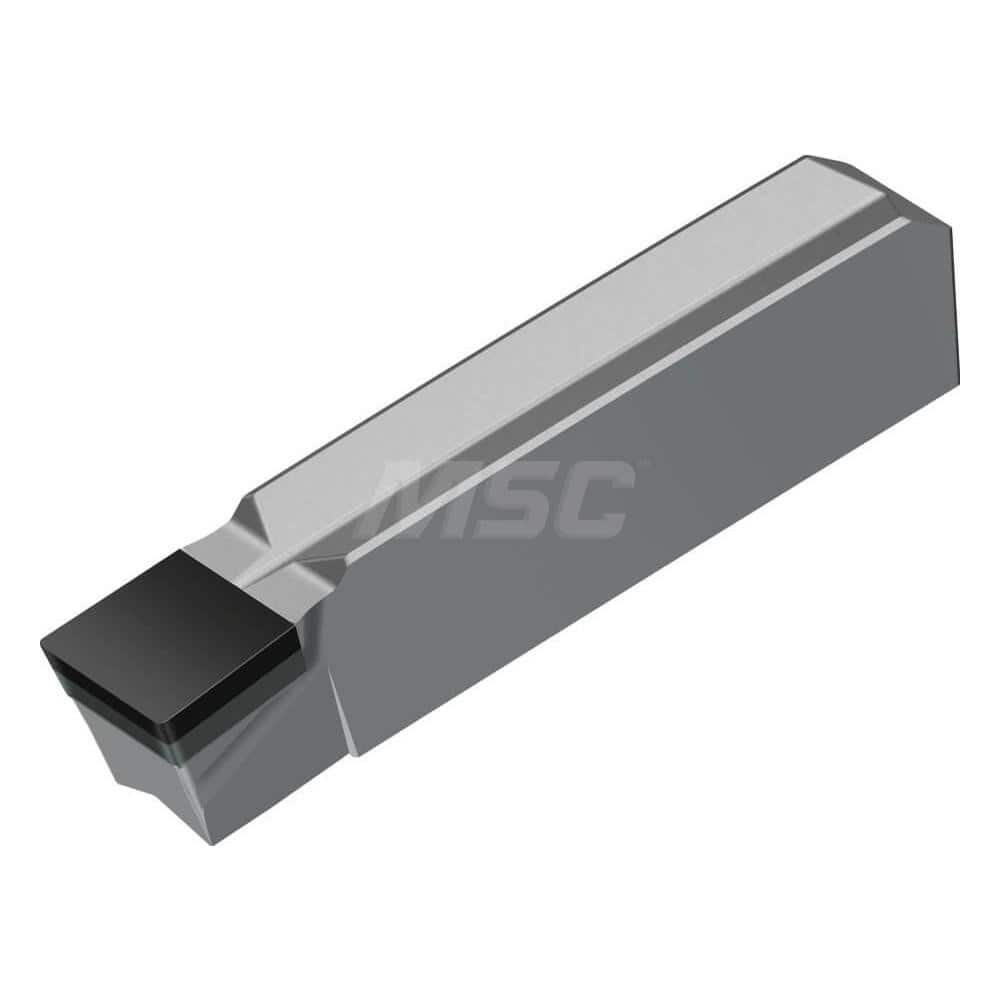

Grooving Insert: GX24EM-1 WBS10, Solid Carbide CBN Finish, Neutral, 0.236″ Cutting Width, Series GX24_EM-1
Item #: 94646106
Brand: Walter
Model #: 7823886
Product Specifications
| Insert Style | GX24 |
| Insert Size Code | 4F600N04EM |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WBS10 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0160 |
| Lead Angle | 0 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | GX24_EM-1 |
| Overall Length (Decimal Inch) | 0.9450 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | GX24-4F600N04EM1 WBS10 |
| Iso Code | GX24-4F600N04EM1 WBS10 |
| Standards | ISO; ANSI |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Chip Breaker | EM-1 |
| Coating/Finish | CBN |
