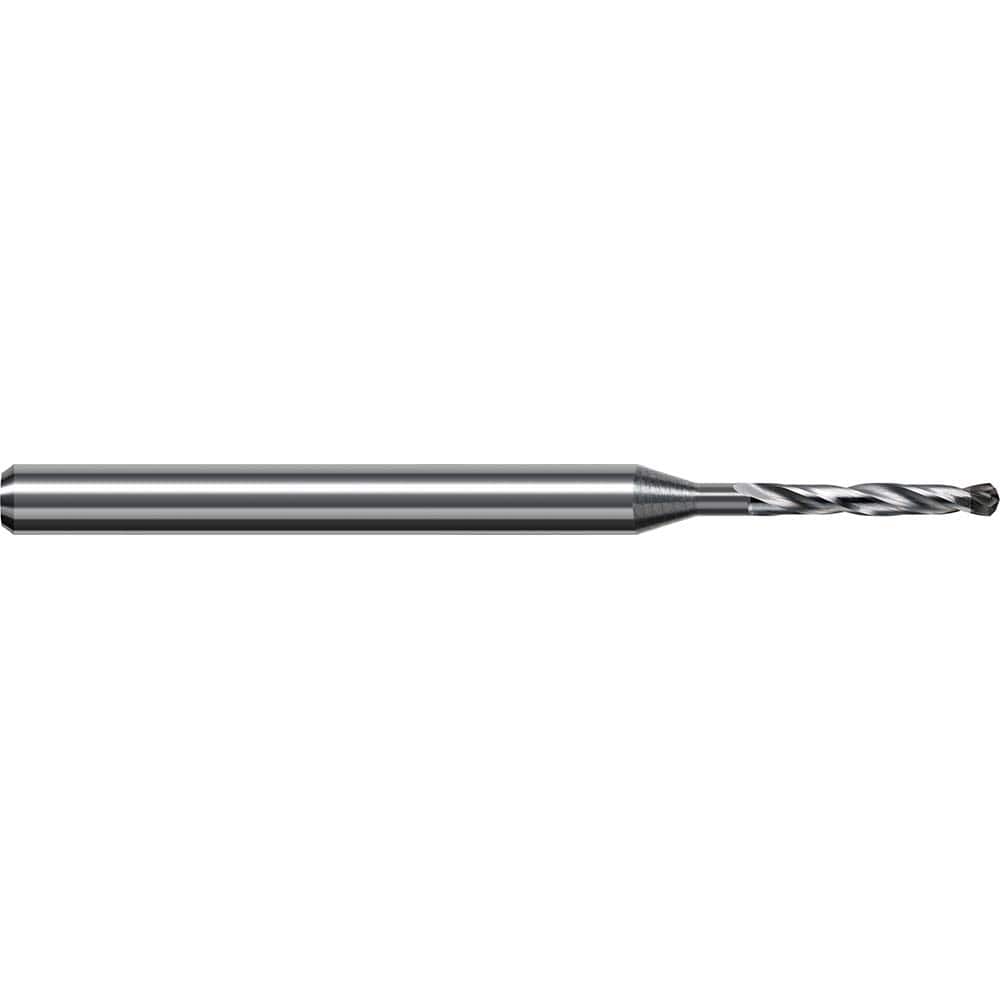

Harvey Tool - Letter E (1/4") 130° Brazed Solid Carbide Jobber Drill
Item #: 94689817
Brand: Harvey Tool
Model #: BCF2500
Product Specifications
| Drill Bit Size (Letter) | E |
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Point Angle | 130 |
| Drill Bit Material | Brazed Solid Carbide |
| Drill Bit Finish/Coating | Polycrystaline Diamond |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 42.00 |
| Flute Length (Decimal Inch) | 1.6535 |
| Overall Length (mm) | 100.0000 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.0000 |
| Drill Bit Diameter Tolerance (mm) | h6 |
| Number of Flutes | 2 |
| Series/List | Miniature High Performance Drills - PCD Diamond - Double Angle |
