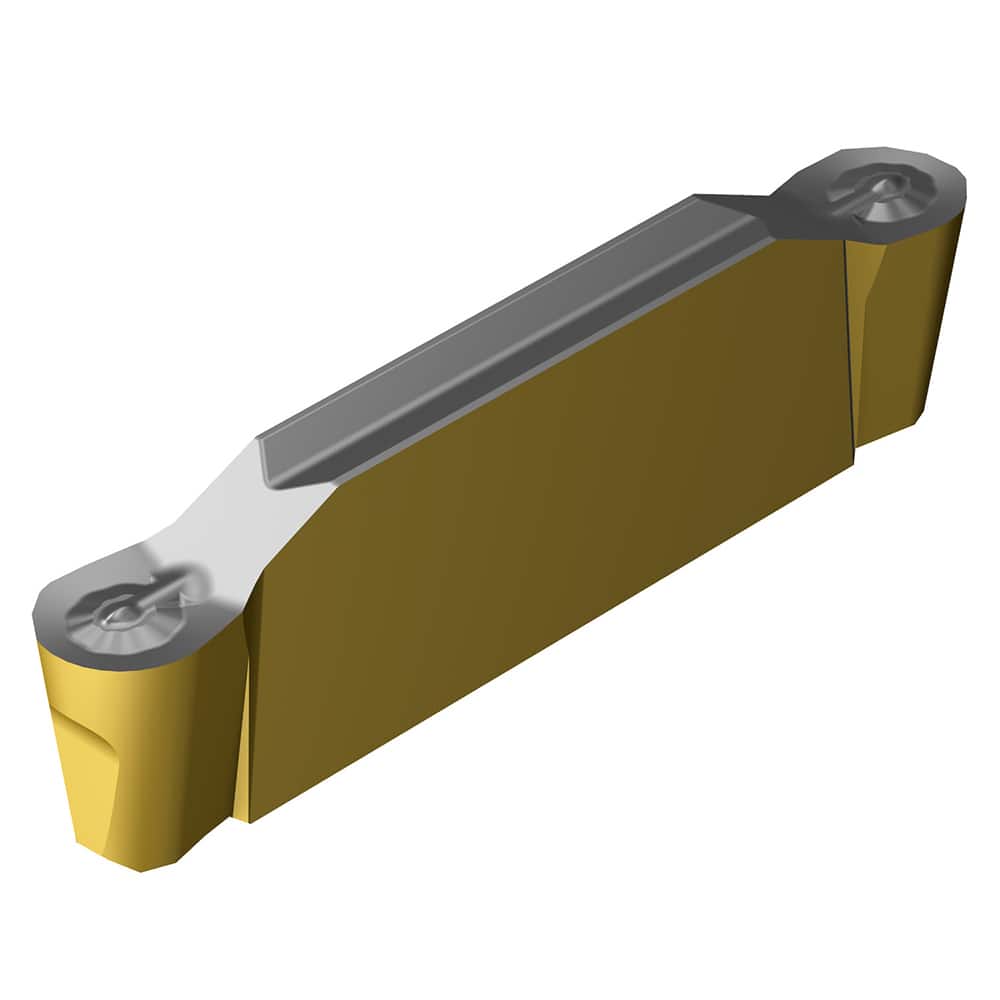

Profiling Insert: N123J2 S205, Solid Carbide 0.1181″ Corner Radius, Series CoroCut 1-2
Item #: 94774288
Brand: Sandvik Coromant
Model #: 8003563
Product Specifications
| Insert Style | N123 |
| Insert Size Code | J2 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | S205 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1181 |
| Relief Angle | 7 |
| Chipbreaker | RO |
| Series | CoroCut 1-2 |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Shape | Irregular |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.2362 |
