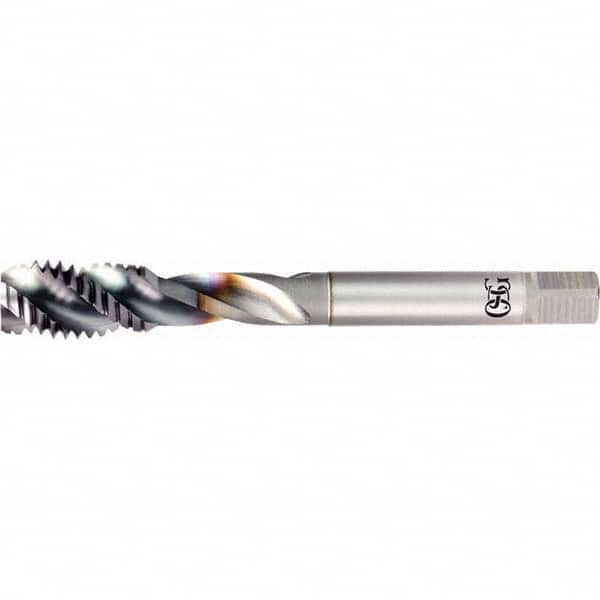

Spiral Flute Tap: M18 x 1.25, 4 Flute, 2-3 P, Normal Class of Fit, VC-10, V Finish Right Hand Flute, Right Hand Thread, D6, Series 16500
Item #: 94911963
Brand: OSG
Model #: 1650013508
Product Specifications
| Material | VC-10 |
| Coating/Finish | V |
| Thread Size (mm) | M18 x 1.25 |
| Thread Limit | D6 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 16.00 |
| Overall Length (mm) | 110.00 |
| Chamfer | 2-3 P |
| Flute Direction | Right Hand |
| Shank Diameter (mm) | 13.76 |
| Tapping Depth (mm) | 55.00 |
| Series | 16500 |
| Helix Angle Range | 15 to 45 |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
| Class Of Fit | Normal |
