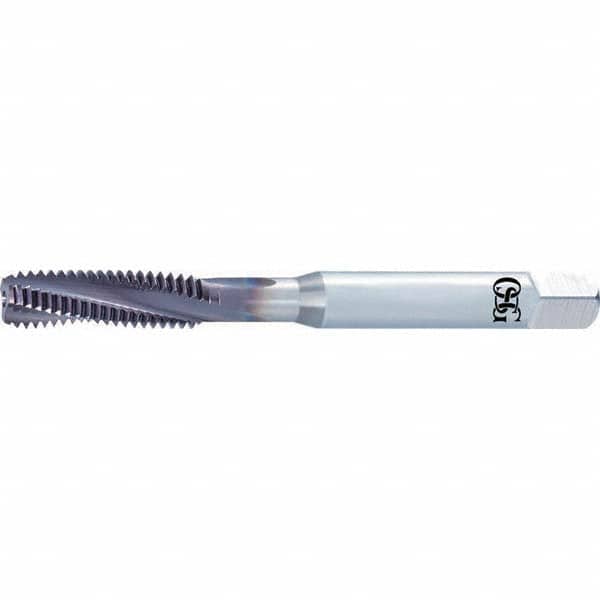

Spiral Flute Tap: 5/16-18, UNC, 3 Flute, 2-3 P, Normal Class of Fit, Solid Carbide, Bright/Uncoated 0.665″ Thread Length, 3.54″ OAL, Right Hand Flute, Right Hand Thread, H5
Item #: 94912003
Brand: OSG
Model #: 1660500400
Product Specifications
| Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Thread Size (Inch - 0 Decimals) | 5/16-18 |
| Thread Standard | UNC |
| Thread Limit | H5 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6650 |
| Overall Length (Decimal Inch) | 3.5400 |
| Chamfer | 2-3 P |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Shank Diameter (Decimal Inch) | 0.3170 |
| Neck Length (Decimal Inch) | 1.3770 |
| Tapping Depth (Decimal Inch) | 1.3770 |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
| Class Of Fit | Normal |
