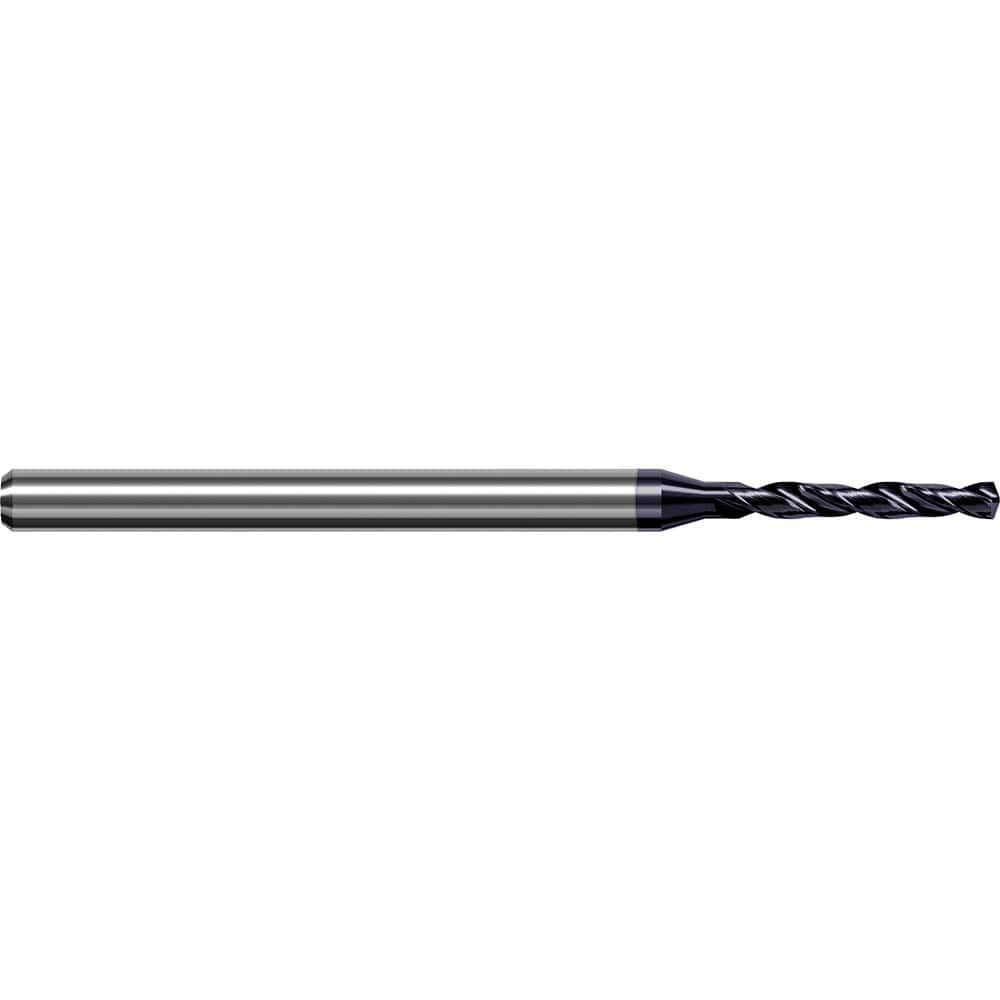

Harvey Tool - #18 140° Solid Carbide Jobber Drill
Item #: 95119012
Brand: Harvey Tool
Model #: BVT1695-C3
Product Specifications
| Drill Bit Size (Wire) | #18 |
| Drill Bit Size (Decimal Inch) | 0.1695 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 75.0000 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.0000 |
| Drill Bit Diameter Tolerance (mm) | h6 |
| Number of Flutes | 2 |
| Series/List | Miniature High Performance Drills - Prehardened Steels |
