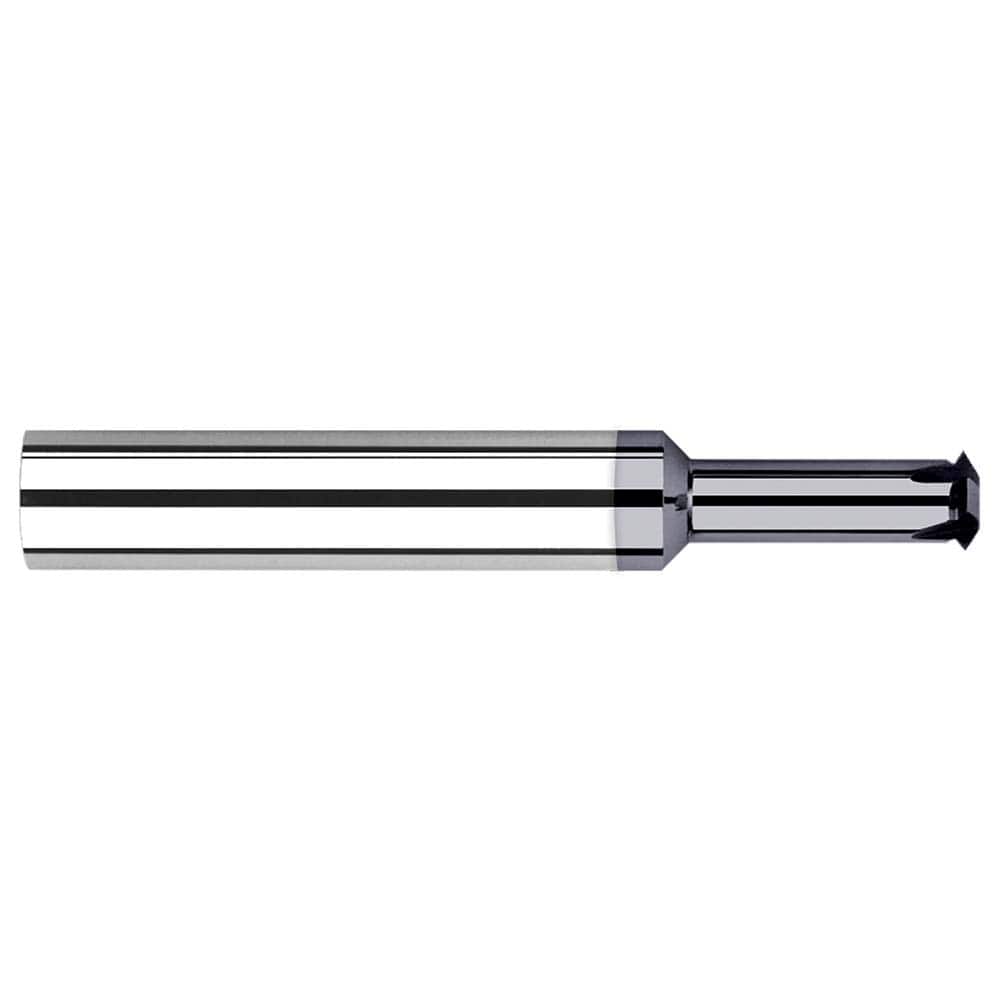

Harvey Tool - Single Profile Thread Mills; Maximum Pitch (mm): 0.40 ; Minimum Pitch (mm): 0.40 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 2 ; Cutting Diameter (Decimal Inch): 1.5000 ; Shank Diameter (mm): 3.0000
Item #: 95285128
Brand: Harvey Tool
Model #: 882119-C3
Product Specifications
Single Profile Thread Mills; Maximum Pitch (mm): 0.40 ; Minimum Pitch (mm): 0.40 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 2 ; Cutting Diameter (Decimal Inch): 1.5000 ; Shank Diameter (mm): 3.0000
| Maximum Pitch (mm) | 0.40 |
| Minimum Pitch (mm) | 0.40 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (mm) | 2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 3.0000 |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.9000 |
| Neck Length (Decimal Inch) | 0.1772 |
| Thread Size | M2x0.40 |
| Overall Length (Decimal Inch) | 1.49610 |
| Overall Length (mm) | 38.0000 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN |
