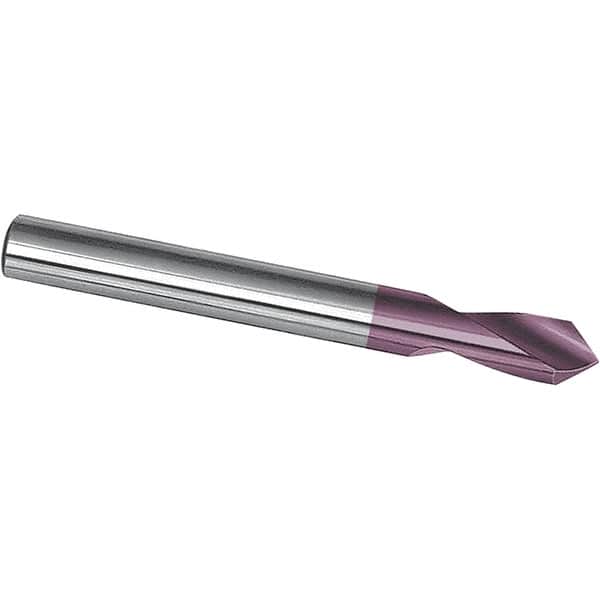

90° 5/16″ Diam 2-3/8″ OAL Solid Carbide Spotting Drill AlTiN Finish, 0.9″ Flute Length, 5/16″ Shank Diam, RH Cut, Series 8195-H
Item #: 95431631
Brand: Magafor
Model #: 888195H0793
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Inch) | 5/16 |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Inch) | 2-3/8 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Single/Double Ended | Single |
| Series | 8195-H |
| Overall Length (Decimal Inch) | 2.3750 |
| Flute Length (Decimal Inch) | 0.9000 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Manufacturers Grade | K15 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
| Web Thinning | Web Thinned |
| Web Thickness | 0.0310 |
