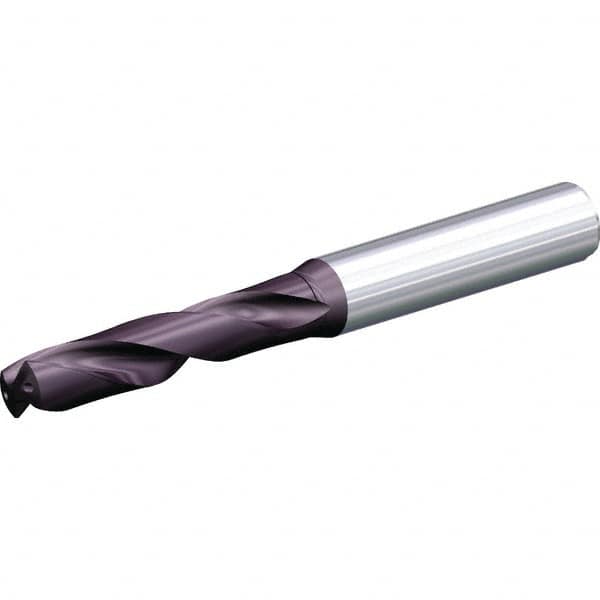

Screw Machine Length Drill Bit: 0.5625″ Dia, 140 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series K210
Item #: 95471900
Brand: Kennametal
Model #: 6351229
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Series | K210 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.7913 |
| Shank Length (mm) | 45.50 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 59.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Material Grade | KCMS15 |
