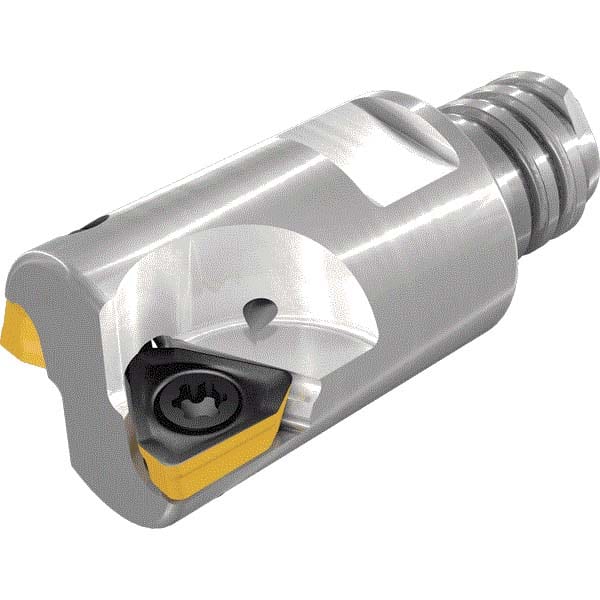

Indexable Square-Shoulder End Mill: HM390 ETP D1403MMT0805, 0.5510'' Cut Dia, 0.5350'' Shank Dia, T08 Modular Connection, Uses 3, Through Coolant, 22.90 mm OAL
Item #: 95617338
Brand: Iscar
Model #: 3345998
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 0.5510 |
| Maximum Cutting Diameter (mm) | 14.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Cutter Style | HM390 |
| Shank Diameter (Decimal Inch) | 0.5350 |
| Shank Diameter (mm) | 13.60 |
| Maximum Ramping Angle | 1.5 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 22.90 |
| Overall Length (Decimal Inch) | 0.9010 |
| Tool Material | Steel |
| Series | HM390 |
| Flute Type | Helical |
| Modular Connection Size | T08 |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Usable Length (mm) | 16.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
