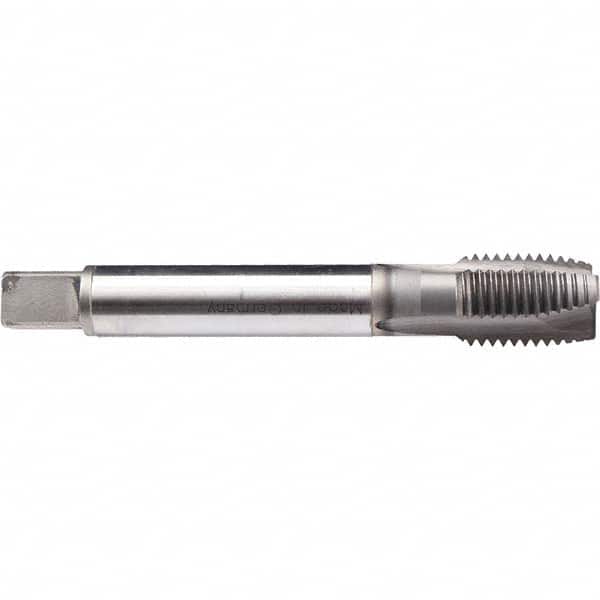

Emuge - 3/4-16 UNF 3B 4 Flute GLT-1 Finish HSS-E Spiral Point Tap
Item #: 95626958
Brand: Emuge
Model #: CU20C310.5050
Product Specifications
| Thread Size (Inch) | 3/4-16 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H4 |
| Finish/Coating | GLT-1 |
| Material | HSS-E |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.3307 |
| Oversize | No |
| Thread Standard | UNF |
| Series/List | CU20C310 |
| Style | High Performance |
| Tapping Depth (Inch) | 2-1/4 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Size (Decimal Inch) | 0.4421 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
