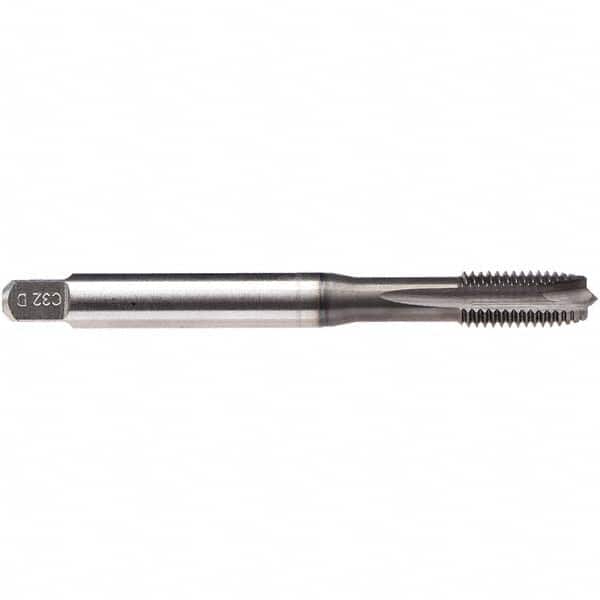

Emuge - #10-32 UNF 3B 3 Flute GLT-1 Finish HSS-E Spiral Point Tap
Item #: 95627352
Brand: Emuge
Model #: BU20C310.5041
Product Specifications
| Thread Size (Inch) | #10-32 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H2 |
| Finish/Coating | GLT-1 |
| Material | HSS-E |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.7559 |
| Oversize | No |
| Thread Standard | UNF |
| Series/List | BU20C310 |
| Neck Length (Decimal Inch) | 0.9843 |
| Style | High Performance |
| Tapping Depth (Inch) | 0.5700 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Stainless Steel; Steel |
| Material Application2 | Stainless Steel; Steel |
