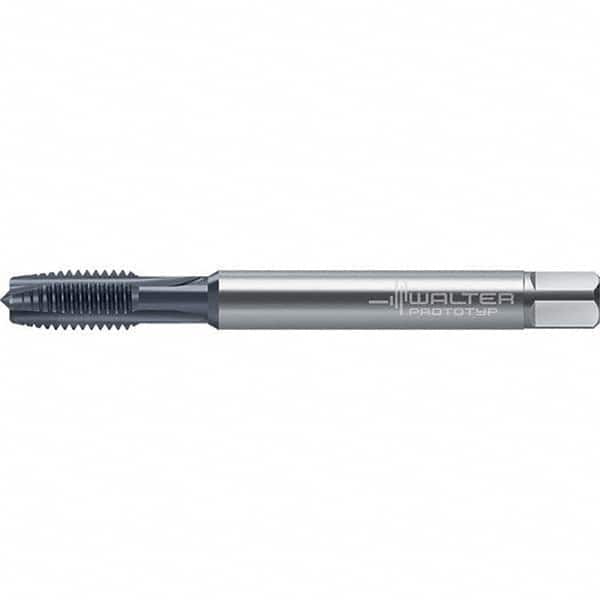

Spiral Point Tap: #2-56, UNC, 2 Flutes, Gunnose, 3B, High Speed Steel, TiCN Finish 0.354″ Thread Length, 1.772″ OAL, Right Hand, Series 22207
Item #: 95680104
Brand: Walter-Prototyp
Model #: 7511552
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | #2-56 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3540 |
| Thread Length (Mm) ( - 3 Decimals) | 9.00 |
| Overall Length (Decimal Inch) | 1.7720 |
| Overall Length (mm) | 45.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 2.80 |
| Shank Diameter (Decimal Inch) | 0.1000 |
| Application | Through-Hole Threading |
| Square Length (mm) | 5.00 |
| Square Length (Decimal Inch) | 0.1970 |
| Square Size (Decimal Inch) | 0.0827 |
| Square Size (mm) | 2.10 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 22207 |
| Teeth per Inch | 56 |
| Coolant Through | No |
| Class Of Fit | 3B |
| Number Of Flutes | 2 |
