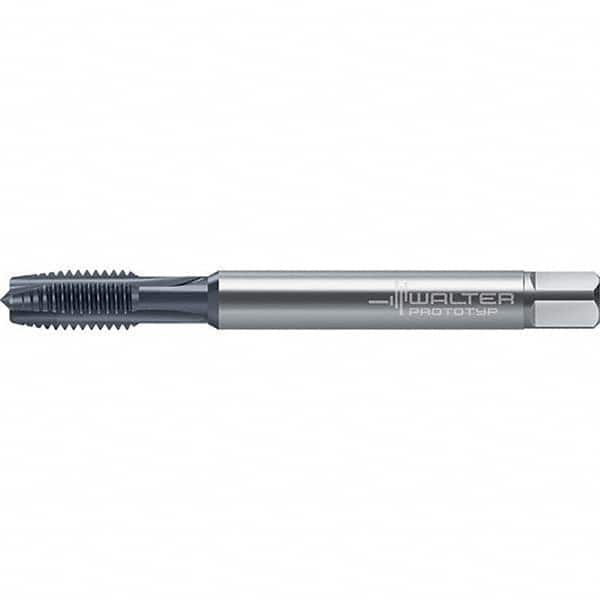

Spiral Point Tap: 1/4-28, UNF, 3 Flutes, Gunnose, 3B, High Speed Steel, TiCN Finish 0.591″ Thread Length, 3.15″ OAL, Right Hand, Series 23207
Item #: 95680138
Brand: Walter-Prototyp
Model #: 7511575
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 1/4-28 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5910 |
| Thread Length (Mm) ( - 3 Decimals) | 15.00 |
| Overall Length (Decimal Inch) | 3.1500 |
| Overall Length (mm) | 80.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 7.00 |
| Shank Diameter (Decimal Inch) | 0.2750 |
| Application | Through-Hole Threading |
| Square Length (mm) | 8.00 |
| Square Length (Decimal Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.2170 |
| Square Size (mm) | 5.50 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 23207 |
| Teeth per Inch | 28 |
| Coolant Through | No |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
