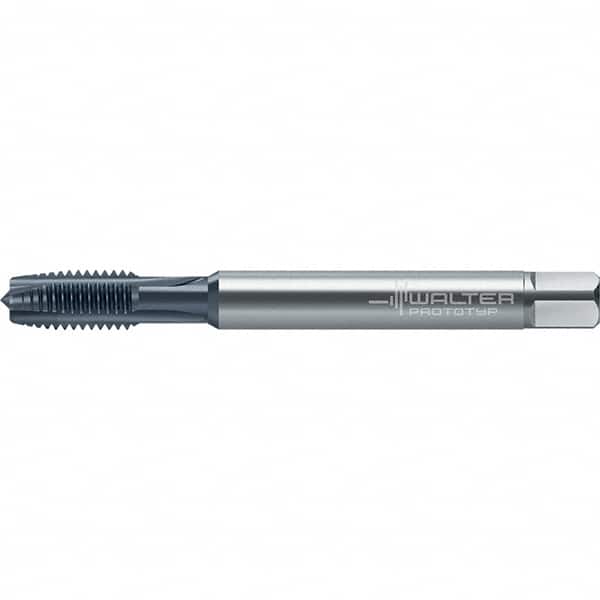

Spiral Point Tap: Metric, 3 Flutes, Gunnose, 6HX, High Speed Steel, TiCN Finish 0.394″ Thread Length, 3.15″ OAL, Right Hand, Series 212161
Item #: 95680229
Brand: Walter-Prototyp
Model #: 7511521
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Standard | Metric |
| Thread Pitch (Decimal Inch) | 0.0300 |
| Thread Pitch (mm) | 0.75 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3940 |
| Thread Length (Mm) ( - 3 Decimals) | 10.00 |
| Overall Length (Decimal Inch) | 3.1500 |
| Overall Length (mm) | 80.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3140 |
| Application | Through-Hole Threading |
| Square Length (mm) | 9.00 |
| Square Length (Decimal Inch) | 0.3540 |
| Square Size (Decimal Inch) | 0.2440 |
| Square Size (mm) | 6.20 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 212161 |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
