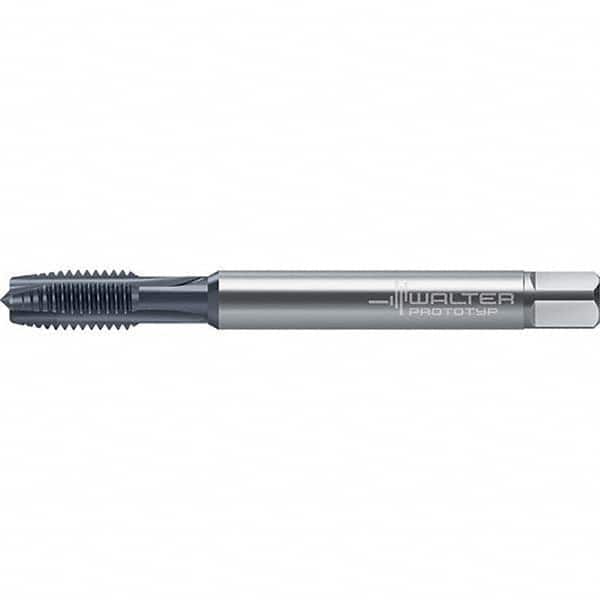

Spiral Point Tap: #10-32, UNF, 3 Flutes, Gunnose, 3B, High Speed Steel, TiCN Finish 5/8″ Thread Length, 2.756″ OAL, Right Hand, Series 23207
Item #: 95680245
Brand: Walter-Prototyp
Model #: 7511576
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | #10-32 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 5/8 |
| Thread Length (Decimal Inch) | 0.6300 |
| Thread Length (Mm) ( - 3 Decimals) | 16.00 |
| Overall Length (Decimal Inch) | 2.7560 |
| Overall Length (mm) | 70.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Application | Through-Hole Threading |
| Square Length (mm) | 8.00 |
| Square Length (Decimal Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.1930 |
| Square Size (mm) | 4.90 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 23207 |
| Teeth per Inch | 32 |
| Coolant Through | No |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
