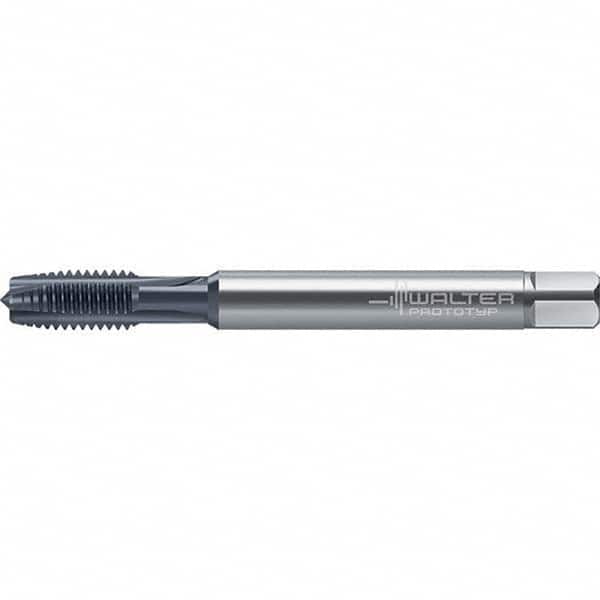

Spiral Point Tap: 3/8-16, UNC, 3 Flutes, Gunnose, 3B, High Speed Steel, TiCN Finish 0.787″ Thread Length, 3.937″ OAL, Right Hand, Series 22207
Item #: 95680310
Brand: Walter-Prototyp
Model #: 7511553
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 3/8-16 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.7870 |
| Thread Length (Mm) ( - 3 Decimals) | 20.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3930 |
| Application | Through-Hole Threading |
| Square Length (mm) | 11.00 |
| Square Length (Decimal Inch) | 0.4330 |
| Square Size (Decimal Inch) | 0.3150 |
| Square Size (mm) | 8.00 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 22207 |
| Teeth per Inch | 16 |
| Coolant Through | No |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
