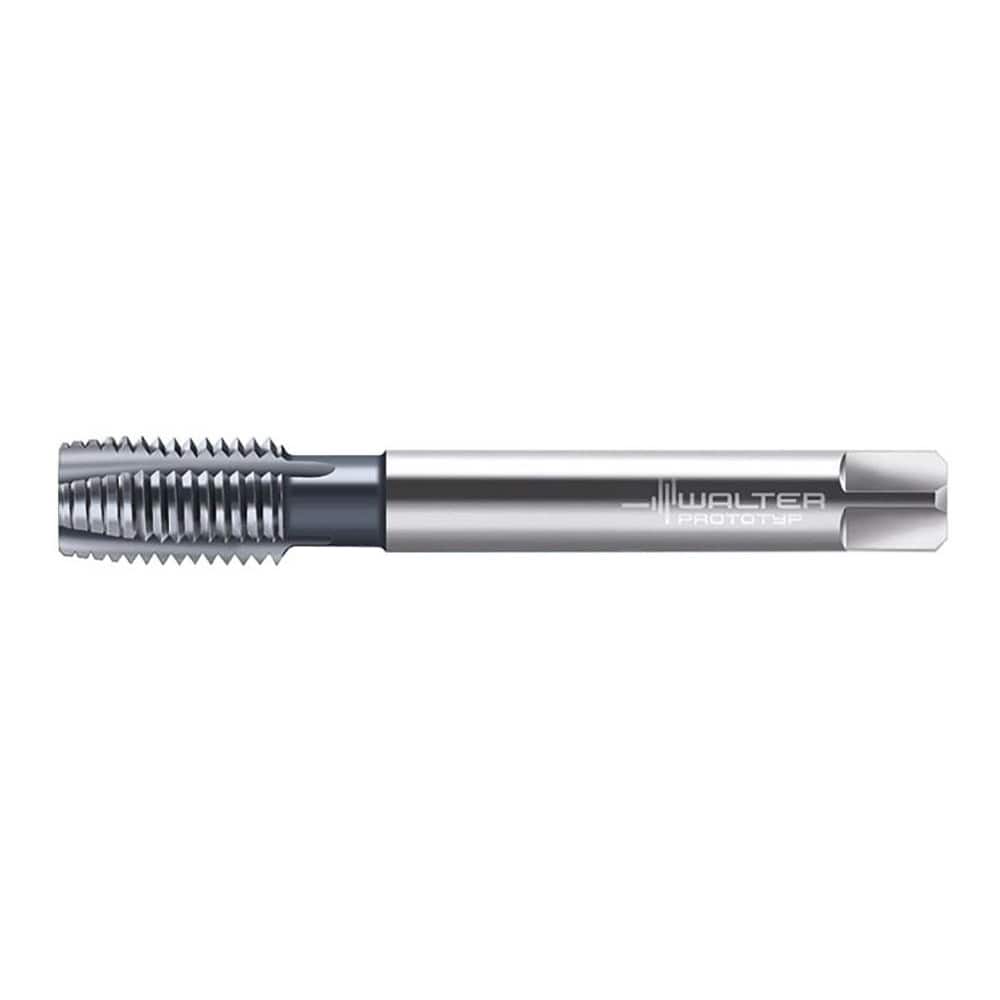

Spiral Point Tap: 1/2-20, UNF, 4 Flutes, Gunnose, 2B, High Speed Steel, TiCN Finish 29/32″ Thread Length, 3.937″ OAL, Right Hand, Series 23267
Item #: 95680385
Brand: Walter-Prototyp
Model #: 7511592
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 1/2-20 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 29/32 |
| Thread Length (Decimal Inch) | 0.9060 |
| Thread Length (Mm) ( - 3 Decimals) | 23.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.3540 |
| Application | Through-Hole Threading |
| Square Length (mm) | 10.00 |
| Square Length (Decimal Inch) | 0.3940 |
| Square Size (Decimal Inch) | 0.2760 |
| Square Size (mm) | 7.00 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 23267 |
| Teeth per Inch | 20 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
