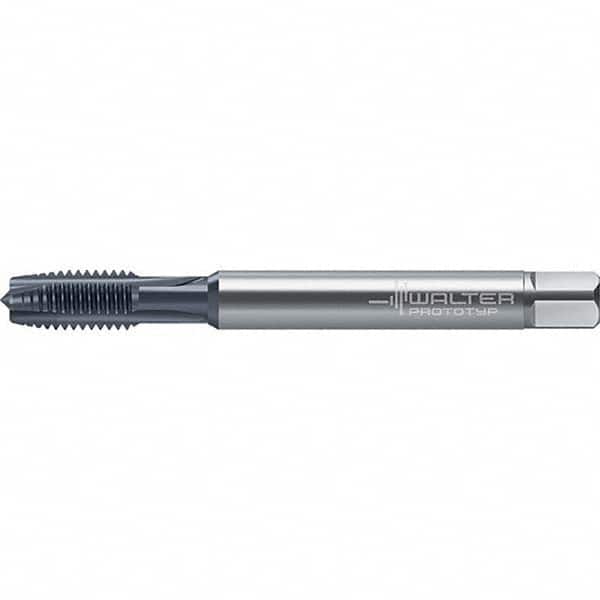

Spiral Point Tap: 5/16-24, UNF, 3 Flutes, Gunnose, 2B, High Speed Steel, TiCN Finish 0.709″ Thread Length, 3.543″ OAL, Right Hand, Series 23217
Item #: 95680393
Brand: Walter-Prototyp
Model #: 7511590
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | 5/16-24 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.7090 |
| Thread Length (Mm) ( - 3 Decimals) | 18.00 |
| Overall Length (Decimal Inch) | 3.5430 |
| Overall Length (mm) | 90.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3140 |
| Application | Through-Hole Threading |
| Square Length (mm) | 9.00 |
| Square Length (Decimal Inch) | 0.3540 |
| Square Size (Decimal Inch) | 0.2440 |
| Square Size (mm) | 6.20 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 23217 |
| Teeth per Inch | 24 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
