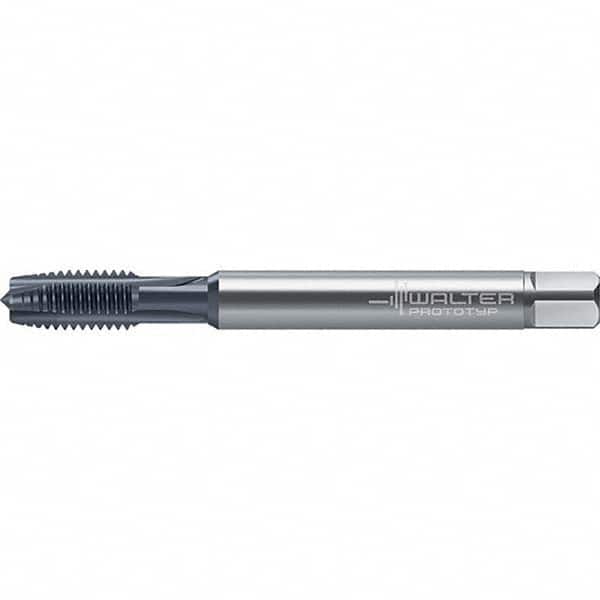

Spiral Point Tap: #5-44, UNF, 2 Flutes, Gunnose, 2B, High Speed Steel, TiCN Finish 0.394″ Thread Length, 2.205″ OAL, Right Hand, Series 23217
Item #: 95680484
Brand: Walter-Prototyp
Model #: 7511589
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Thread Size (Inch - 0 Decimals) | #5-44 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3940 |
| Thread Length (Mm) ( - 3 Decimals) | 10.00 |
| Overall Length (Decimal Inch) | 2.2050 |
| Overall Length (mm) | 56.00 |
| Chamfer | Gunnose |
| Oversize | No |
| Shank Diameter (mm) | 3.50 |
| Shank Diameter (Decimal Inch) | 0.1000 |
| Application | Through-Hole Threading |
| Square Length (mm) | 6.00 |
| Square Length (Decimal Inch) | 0.2360 |
| Square Size (Decimal Inch) | 0.1060 |
| Square Size (mm) | 2.70 |
| Material Application | Non-Ferrous Metal; Aluminum & Other Non-Ferrous Metal; Stainless Steel; Nick, Cobalt, Titanium Alloy; Steel; Heat Resistant Special Alloy Iron |
| Series | 23217 |
| Teeth per Inch | 44 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 2 |
