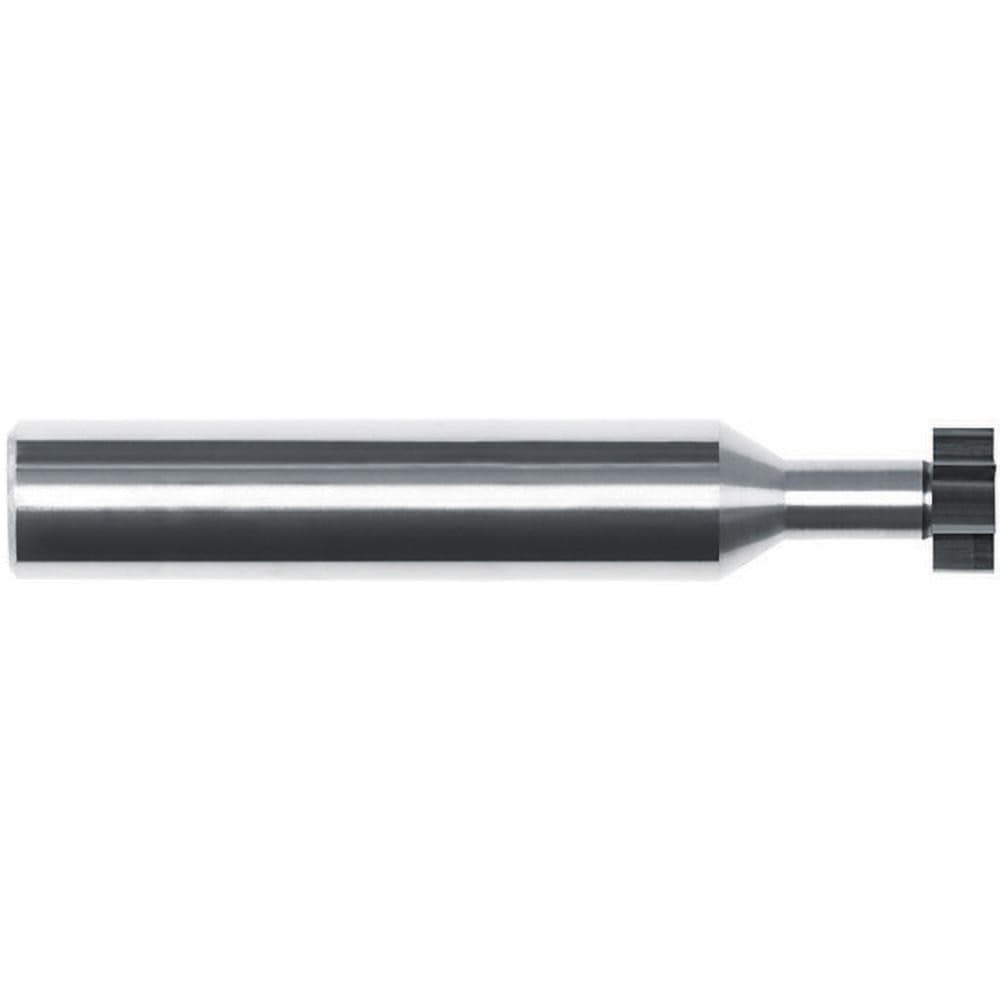

Woodruff Keyseat Cutter: 5/16" Cut Dia, 1/32" Cut Width, 5/16" Shank Dia, Straight Tooth
Item #: 87903308
Brand: Internal Tool
Model #: 76-1470
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 5/16 |
| Cutter Diameter (Decimal Inch) | 0.3120 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/32 |
| Cutting Width (Decimal Inch) | 0.0312 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.1500 |
| Neck Length (Decimal Inch) | 0.3120 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Non-ISO |
| Primary Workpiece Material Code | N; O |
| Cutter Material Grade | Micrograin |
| Series | 76 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 4 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
