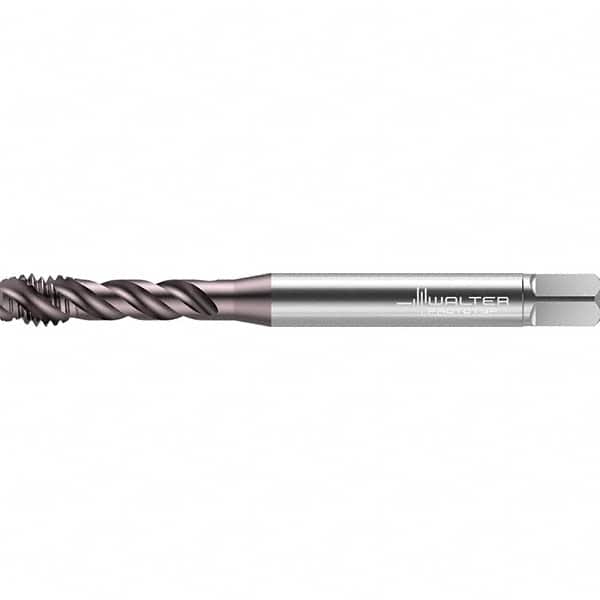

Walter-Prototyp - #8-36 UNF 3 Flute 2B/3B Semi-Bottoming Spiral Flute Tap - High Speed Steel, TiAlN Finish, 63mm OAL, Right Hand Flute, Right Hand Thread, Series TC117
Item #: 95978441
Brand: Walter-Prototyp
Model #: 7557078
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-36 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B/3B |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 63.00 |
| Thread Standard | UNF |
| Material Grade | WY80RG |
| Series/List | TC117 |
