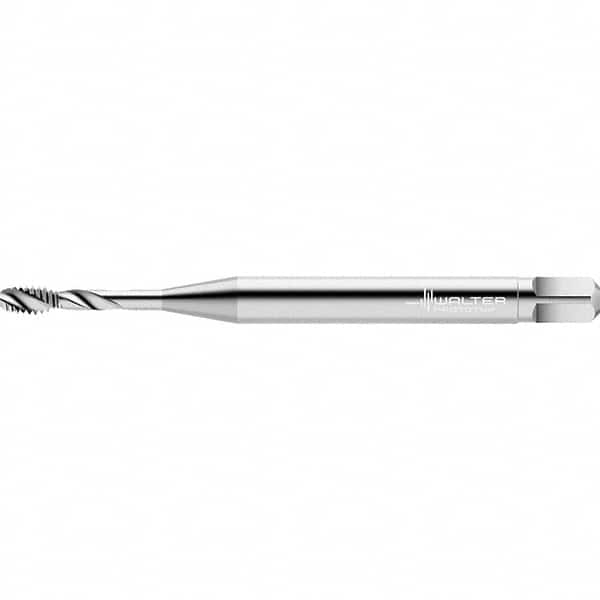

Walter-Prototyp - #4-40 UNC 2 Flute 2B Semi-Bottoming Spiral Flute Tap - High Speed Steel, Bright Finish, 56mm OAL, Right Hand Flute, Right Hand Thread
Item #: 95981379
Brand: Walter-Prototyp
Model #: 7569488
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #4-40 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B |
| Number of Flutes | 2 |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 56.00 |
| Thread Standard | UNC |
| Shank Diameter (mm) | 3.58 |
